Waterproof Treated H20 Timber Beam , Yellow Timber H Beam For Slab Formwork

China Waterproof Treated H20 Timber Beam , Yellow Timber H Beam For Slab Formwork supplier
Waterproof Treated H20 Timber Beam , Yellow Timber H Beam For Slab Formwork supplier Waterproof Treated H20 Timber Beam , Yellow Timber H Beam For Slab Formwork supplier

Large Image :  Waterproof Treated H20 Timber Beam , Yellow Timber H Beam For Slab Formwork

Product Details:

Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: Waterproof H20 timber beam

Payment & Shipping Terms:

Minimum Order Quantity: 2000 meters
Price: pls ask HORIZON
Packaging Details: pallets, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 tons per week
Contact Now
Detailed Product Description
Material: Finland Spruce OEM: Available
Finishing: Coated Yellow Waterproof Size: 200 Mm X 80 Mm
Application: For Wall Formwork Length: 2.45m, 3.0m, 3.9m, 4.5m, Etc
Samples: Available

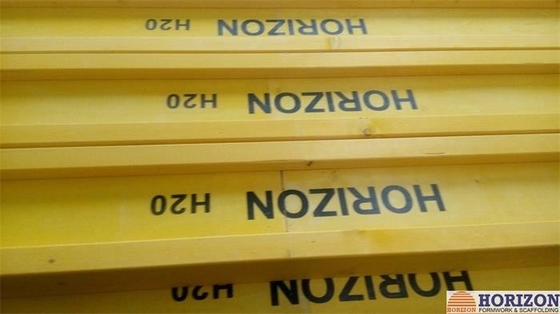

Waterproof Treated H20 Timber Beam with Weight 4.8kg/m for Slab Formwork



The H20 beam is an economical alternative to each project formwork, used for wall, column and slab formwork. It is definitely the best solution no matter when it comes to complicated ground and basement plans or to numerous uniformly typical applications with the same wall heights and slab structures.



The H20 beam is sturdy, easy to handle and at a weight of only 4.8 kg/m offers a high load-bearing capacity at large distances of walings.



It is produced in an automatically controlled production line. Wood quality and splicing is continually carefully checked. A very long duration of life is assured by its high-grade bonding and its rounded beam ends.



The advantage:

1). fewer ties are needed.

2). high stability at low weight

3). no problems with the restructuring of wall formwork units when a frequent change of ground plans takes place.



Technical Data:

ITEM Working Capacity Waterproof Treated H20 Timber Beam , Yellow Timber H Beam For Slab Formwork
Safe operation bending moment 5KN.M
Safe operation shear force 11KN
Weight 4.8 kg/m

Various lengths up to 5.9 m are available.


Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
--- bundles: timber beam, steel props, tie rod, etc.
--- pallet: small parts will be put in bags and then on pallets.
--- wooden cases: it is available on customer's request.
--- bulk: some irregular goods will be loaded in bulk in container.

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.

Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.


What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.


Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.

We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.


HORIZON FORMWORK, your reliable formwork partner!
