Joist Clamping Connector Formwork Scaffolding Systems With H20 Beam Formwork

Joist Clamping Connector Formwork Scaffolding Systems With H20 Beam Formwork
Joist Clamping Connector Formwork Scaffolding Systems With H20 Beam Formwork Joist Clamping Connector Formwork Scaffolding Systems With H20 Beam Formwork

Large Image :  Joist Clamping Connector Formwork Scaffolding Systems With H20 Beam Formwork

Product Details:
Place of Origin: China
Brand Name: HORIZON
Certification: SGS
Model Number: Joist clamping connector
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Pls check with HORIZON
Packaging Details: pallets, bundles, bags, etc.
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 M2 per month
Detailed Product Description
Material: Beam Clamp, Steel Prop, Fork Head Application: Drop Beam Concreting
Site Supervision: Available Type: Beam Formwork
Beam Height: Max. 900mm Supporting: Joist Clamping Connector, Steel Props
High Light:

slab shuttering system

,

table formwork system

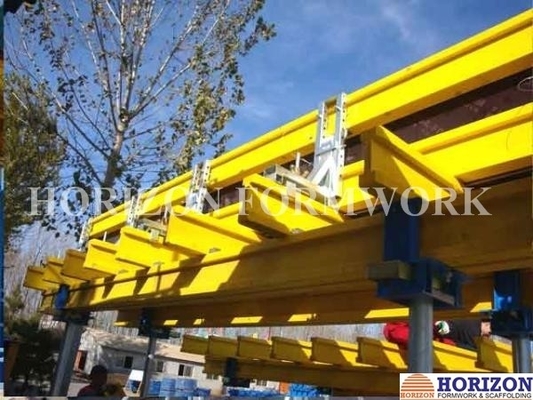

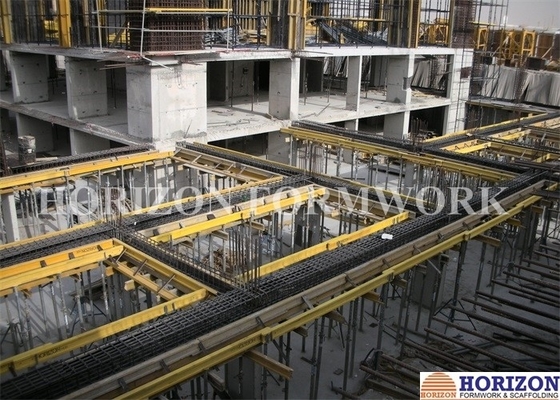

Joist Clamping Connector for Drop Beam Concrete with H20 Beam Formwork​


Drop beams are always designed in many projects, which seems troublesome and cost money while constructing such beams. Now, HORIZON beam formwork can help reduce work and cost.

The beam formwork consists of joist clamping connectors, extension beams (side beams) as well as the commonly used 20 cm high timber beams. With these items, beams can be shuttered simply and quickly up to heights of 60 cm without the use of forming wall ties. Even beam heights of 90 cm can be attained by using timber beams arranged in upright position.

The joist clamping connector is attached to the H20 timber beam flange by easy tightening the wing nut. The timber beam is part of the bottom shuttering of the concrete beam.

Exactly rectangular side shuttering can be formed due to the large dimension and contact area of the two clamped side forms.



Joist Clamping Connector Formwork Scaffolding Systems With H20 Beam Formwork 0







Beam height

H (cm)

Max. Distance of beam clamps

Without slab

(m)

With slab t=20cm

(m)

With slab t=30cm

(m)

30 2.25 1.5 1.25
35 2.00 1.25 1.00
40 1.75 1.05 0.9
45 1.50 0.95 0.8
50 1.35 0.85 0.7
55 1.30 0.75 0.60
60 1.05 0.65 0.50
65 0.9 0.50 0.40
70 0.80 0.40 0.35
75 0.60 0.30
80 0.55
85 0.45
90 0.35



Who we are:

HORIZON FORMWORK is a professional formwork solution provider for years, supplying: formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.



What we offer:

Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc. On-site supervising support is available on request.



Why us:

With 10 years of experience, we know exactly what you need; Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request. Prompt action on customer's requirments. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.

Joist Clamping Connector Formwork Scaffolding Systems With H20 Beam Formwork 1

HORIZON FORMWORK, your reliable formwork partner!
