Solid Structure Single Sided Wall Formwork Vertical Waling With Push Pull Braces

Certification
Good quality Wall Formwork Systems for sales
Good quality Wall Formwork Systems for sales
Customer Reviews
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Laura

This mutual cooperation last for about 4 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Kresimir Brebric

I'm Online Chat Now

Solid Structure Single Sided Wall Formwork Vertical Waling With Push Pull Braces

China Solid Structure Single Sided Wall Formwork Vertical Waling With Push Pull Braces supplier
Solid Structure Single Sided Wall Formwork Vertical Waling With Push Pull Braces supplier Solid Structure Single Sided Wall Formwork Vertical Waling With Push Pull Braces supplier

Large Image :  Solid Structure Single Sided Wall Formwork Vertical Waling With Push Pull Braces

Product Details:

Place of Origin: CHINA
Brand Name: HORIZON
Model Number: Single-sided wall formwork frames

Payment & Shipping Terms:

Minimum Order Quantity: 100 sets
Price: pls ask HORIZON
Packaging Details: pallets, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets per week
Contact Now
Detailed Product Description
Material: Q235 Steel Pipesl OEM: Available
Finishing: Painted, Powder Coated, Or As Per Request Application: For Retaining Wall Formwork
Height: Up To 3.3m Shifting: By Crane Lift

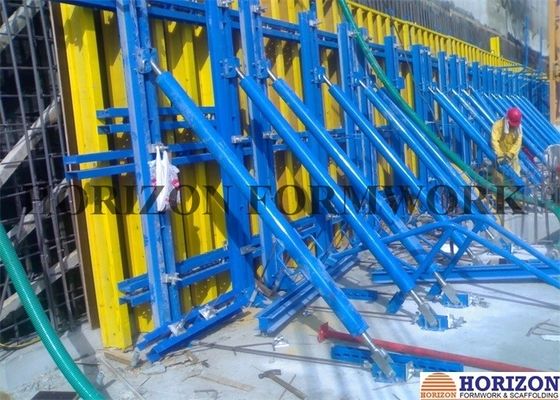

Simple-to-operate Single-sided Wall Formwork Frames with Push-pull Braces



Bracing supported single-sided wall formwork is also used for single-side structural walls construction. With simple structure, less weight and components, it is the ideal solution for walls less than 3.3 m high.

The push-pull braces are used to align and support the formwork. The loads resulting from the pouring are transferred into the push-pull brace and the cast-in tie anchors at the front base of the vertical waling.

Connection between formwork panels and vertical waling is quickly and easily done with connectors. Besides, the vertical waling is anchored to the ground by rods previously embedded in the foundation.



Advantages:
1. The concrete pressure are reliably transferred to the embedded anchor systems and push-pull braces.
2. The maximum wall height is up to 3.3 m.
3. Once assembled, each set of bracket and panels can be easily lifted and moved to the required pouring location.
4. For safety, working platforms can be fixed into these systems



Components Specification / description
Vertical waling [12 steel channel
Push-pull brace To support formwork
Cross beam

The cross beams are fastened to the frames by means of screw tie rods connected to the anchor system which are pre-casted in the concrete ground.

Also, cross beam links single-sided frames in horizontal position to form a unit for lifting.

Anchor rod D20

Cast in concrete and discharges the tensile loads into the building structure.

With Dywidag thread, to transfer the load from the supporting frames into the floor slab or foundation.



Coupling nut D20 With hexagonal head, to connect cast-in anchor rod and re-usable anchor elements.
Top scaffold bracket

Painted,

severs as safety working platform


Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
--- bundles: timber beam, steel props, tie rod, etc.
--- pallet: small parts will be put in bags and then on pallets.
--- wooden cases: it is available on customer's request.
--- bulk: some irregular goods will be loaded in bulk in container.
Solid Structure Single Sided Wall Formwork Vertical Waling With Push Pull Braces
Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.

Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.


What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.


Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.

We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.


HORIZON FORMWORK, your reliable formwork partner!



Contact Details
HORIZON FORMWORK CO., LTD.

Contact Person: Mr zhang

Send your inquiry directly to us (0 / 3000)
