Supporting And Aligning Wall Formwork Systems Spare Parts Telescopic Brace

Supporting And Aligning Wall Formwork Systems Spare Parts Telescopic Brace
Supporting And Aligning Wall Formwork Systems Spare Parts Telescopic Brace Supporting And Aligning Wall Formwork Systems Spare Parts Telescopic Brace Supporting And Aligning Wall Formwork Systems Spare Parts Telescopic Brace

Large Image :  Supporting And Aligning Wall Formwork Systems Spare Parts Telescopic Brace

Product Details:
Place of Origin: CHINA
Brand Name: HORIZON
Model Number: PUSH-PULL PROP
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per week
Detailed Product Description
Material: Steel Pipe Q235 OEM: Yes
Application: To Support Wall Formwork Panels Type: Push-pull Brace
Length: 700mm - 2900mm Or Customized Sizes Finishing: Paint, Galvanized, Powder Coating
Adjusting Length: By Righ-hand And Left-hand Revolving Device Packing: Steel Pallets
High Light:

wall shuttering system

,

wall forming systems

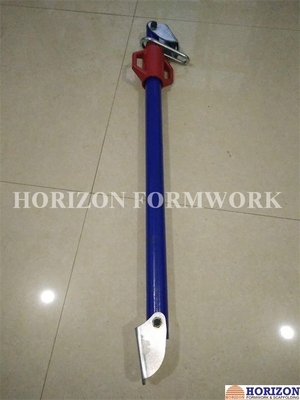

Telescopic Brace for Supporting and Aligning Wall Formwork Systems

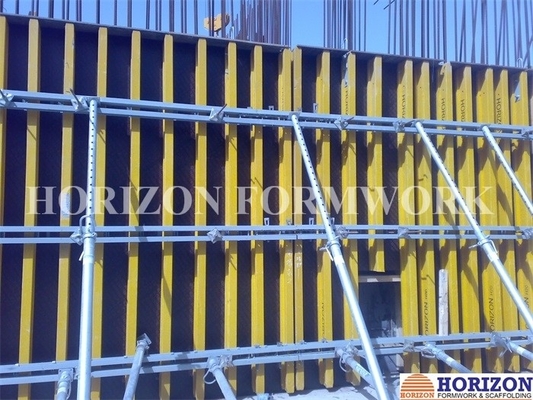

Push-pull braces are to support and adjust wall formwork panels, used with foot plate and connecting parts.

The push-pull brace enables the initial positioning of the formwork panels for strait or curved walls, for plumbing and bracing concrete wall forms, column forms, and many other construction applications where strong, rigid bracing elements are required.



It also provides stability until permanent structural connections are completed and lateral stability of the building or structure is established.



With high push-pull load capacity, it's very safe in wall formwork costruction.



With wing nut and tie rod, it's quite simple to connect the push-pull brace to the formwork panel, no additional parts needed.



Flexible, but same connection to the steel waling on all HORIZON wall formwork panels.

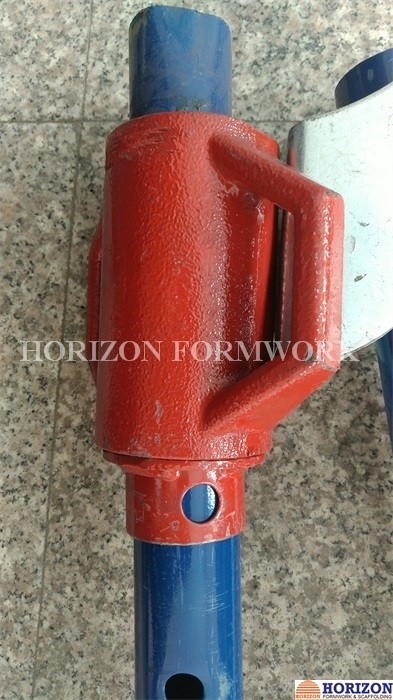

With right-hand and left-hand turning spindle and revolving handle, it’s easy and safe for aligning and propping of wall formwork panels.



Push-pull props are also use for horizontal support of formwork panels.


Wall Formwork Components:

Components Specification / description
Wall formwork panel For all vertical formworks
H20 Timber beam

Water proof treated
Height: 200mm
Width: 80mm
Length: as per table size

Steel waling

Painted, powder coated
[12 steel channel

Flange clamp

Galvanized
To connect steel waling and H20 beams

Panel strut

Painted
help formwork panel erection

Waling connector 80

Painted
Used for formwork panels alignment

Corner connector 60x60

Painted
Used for forming inner corner formwork with wedge pins

Top scaffold bracket

Painted,
severs as safety working platform

Supporting And Aligning Wall Formwork Systems Spare Parts Telescopic Brace 0
