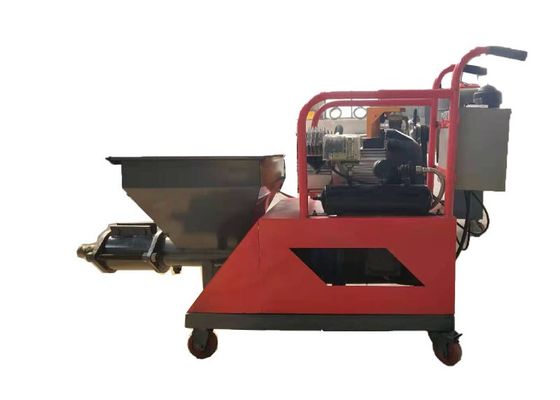

Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw

Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw
Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw

Large Image :  Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw

Product Details:
Place of Origin: hebei xingtai
Brand Name: minggejixie
Certification: iso9001
Model Number: 311Mortar spraying machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 500-1000
Packaging Details: 1:Packing in special plastic bags 2:Fixed in plastic bags to prevent it from falling off. 3:Seal with wooden box
Delivery Time: 3-15 days
Payment Terms: L/C, T/T
Supply Ability: 300+Set/Sets+Mohth
Detailed Product Description
Modle: 311 Power: 4kw
Voltage: 220V/380V Input Pressure: 3-6Mpa
Transmission Of Horizontal Distance: 15m Capacity: 2m³
Through The Particles: <4mm The Vertical Distance Transport: 10m
Weight: 150kg Spraying Speed: 50M2/h
Size: 1600*450*800mm
High Light:

2m3 spray plaster machine

,

2m3 cement plaster spray machine

,

spray plaster machine power 4kw

Product Description


1. Single cylinder & single-acting, ball valve, quick clamp connection, operation and cleaning conveniently.

2. Adopt special design rubber parts to connect to the feeding and back port, easy to disassemble.
3. V belt and gear transmission, high efficiency, low failure rate.
4. The special design of the working valve chamber ensures the mortar flow easily, small resistance,
no deposition.
5. The screen adopts rubber spring with cone bolt installation, convenient disassembly.
6. The mixing shaft in the hopper is directly linked to the piston rod, thus this shaft is synchronously moved with the said piston rod effectively prevent mortar precipitation.
7. Equipped with special mortar nozzle, making spraying operation more smoothly, continuously and reducing the rebound effectively.



Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 0



Product size chart



Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 1
Speciflcation



model 311 318 511 711
Power 4kw 4kw 7.5kw 7.5kw
Voltage 220v/380v 220v/380v 380v 380v
Input pressure 3-6mpa 4mpa 5-8mpa 5mpa
horizontal distance 15m 15m 20m 30m
capacity 2m³ 2m³ 3-5m³ 6m³
particles <4mm <3mm <5mm <7mm
vertical distance 10m 10m 15m 20m
Weight 150kg 150kg 220kg 280kg
Spraying speed 6l/min 7l/min 10l/min 20l/min
Size 1600*450*800mm 1200*450*600mm 1700*550*900mm 1800*600*700mm



Product size chart




 Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 2
Features of spraying machine

Features of putty spraying machine:

1. Adjust the size of the flow, tune out the best coating results. 2. In addition to the electrical control box can switch, but also equipped with remote control switch spraying. 3. Gun connection with the feeding tube can be rotated for easy operation. 4. High efficiency, good quality. 5. Easy structure, easy to handling on-site,and accessories is cheap ,easy to maintenance.

Product Show

Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 3

Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 4

Details Images

Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 5

Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 6

Application Scenarios



Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 7



Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 8

packing and shipping

Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 9



Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 10

1:Packing in special plastic bags

2:Fixed in plastic bags to prevent it from falling off.

3:Seal with wooden box

Small Cement 2m3 Spray Plaster Machine For Building Wall , Power 4kw 11



FAQ

1.How long of the delivery time?

It takes about 15 working days to delivery the secondary structure column pump machine
2.what isthe warranty time?
1 years
3.Do you have agent ?
We are looking for agent in every country, if you have interesting, feel free tocontact us .
4.How can we use the machine?
we will send the english user manual and video with the machine, if not enough, we can teach you online.
5.What is the MOQ:
1 set
6.What is the payment term?
30% deposit T/T , balance pay against copy of B/L if CIF or CFR. 50% deposit T/T, balanced pay off when we finish the production.
