Articulated Flange Tie Rod Wing Nut Dywidag Thread To Fix Wall Formwork System

China Articulated Flange Tie Rod Wing Nut Dywidag Thread To Fix Wall Formwork System supplier
Articulated Flange Tie Rod Wing Nut Dywidag Thread To Fix Wall Formwork System supplier Articulated Flange Tie Rod Wing Nut Dywidag Thread To Fix Wall Formwork System supplier Articulated Flange Tie Rod Wing Nut Dywidag Thread To Fix Wall Formwork System supplier

Large Image :  Articulated Flange Tie Rod Wing Nut Dywidag Thread To Fix Wall Formwork System

Product Details:

Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: Articulated flange nut

Payment & Shipping Terms:

Minimum Order Quantity: 5000 pcs
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 pcs per week
Contact Now
Detailed Product Description
Material: Ductile Cast Iron OEM: Available
Finishing: Natrual Colour, Galvanized Size: With Plate 120mm X 120mm
Application: To Fix Inlcined Wall Formwork Weight: 1.1kg, 1.3kg
Samples: Available Tech. Process: Casted
Thread: Dywidag Thread 15mm, 20mm

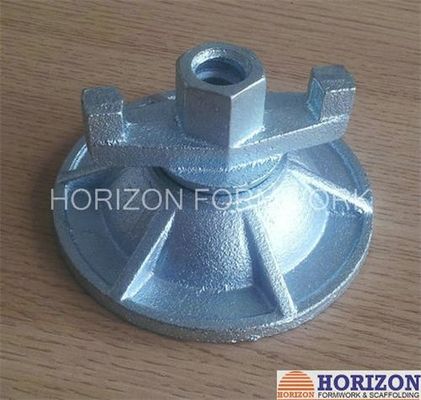

Articulated Flange Nut With Dywidag Thread to Fix Wall Formwork System



The articulated flange nut is made from cast iron, with Dywidag thread Ø15mm (20mm) and plate 120mm x 120mm (Ø120mm). Various finishing available: galvanized, hdg, painted. With a max. inclination 15°, it is ideal slope plate for inclined formwork fixing and supporting.

Spanner side width 27 mm; max. working load capacity 90 kN allowed.



Item No. Bar dia (mm) Plate dia(mm) Weight(kg)
SP-120H 15 120 x 120 1.28
SP-120L 15 120 x 120 1.1
SP-Ø120 15 Ø120 1.0
SP-Ø130 20 Ø130 1.0





Part Name Specification Weight (kg) Remark

Tie-rod



D15

D20

1.5 kg/m

2.7 kg/m

L=6m;

Special length available upon request.

Slope Super plate



D15 1.28 Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut



D15

D20

0.97

0.78

For tie-rod D15;

For tie-rod D20

Waling plate



120 x 120 x 6, Φ19

120 x 120 x 8, Φ19

0.65

0.85

For tie-rod and nut D15;

galvanized

Water stopper



D15

D20

0.55

0.72

Used in water resistant wall;

With tie-rod D15 / D20

Anchor plate



D20 0.95 Embedded in concrete as lost part


Articulated Flange Tie Rod Wing Nut Dywidag Thread To Fix Wall Formwork System

Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.


Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
