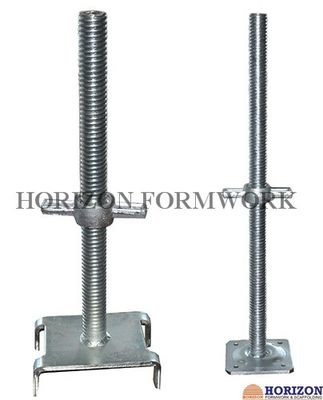

Jack Heads Scaffolding Leg Screws High Strength Steel Pipe BS1139 Standard

Jack Heads Scaffolding Leg Screws High Strength Steel Pipe BS1139 Standard
Jack Heads Scaffolding Leg Screws High Strength Steel Pipe BS1139 Standard Jack Heads Scaffolding Leg Screws High Strength Steel Pipe BS1139 Standard

Large Image :  Jack Heads Scaffolding Leg Screws High Strength Steel Pipe BS1139 Standard

Product Details:
Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: scaffold screw jack base
Payment & Shipping Terms:
Minimum Order Quantity: 2000 pcs
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 20000 pcs per week
Detailed Product Description
Material: Q235 Steel Pipe OEM: Available
Finishing: Zinc-plate, Hdg, Painted Standard: BS1139
Size: Dia48mm X 5mm, Or As Request Application: Scaffolding Height Adjustament
Base Plate: 150 X 150 X 5mm Casting Nut: 0.75kg
High Light:

adjustable screw jack

,

scaffold adjusting screw

ACME Thread Jack Head Screwed with High Strength Steel Pipe for Frame Scaffolding



Made from high strength steel pipes, screw jack heads are equipped with 150 x 150 mm head plate to support and stabilize horizontal timber beam or steel beams in slab construction. Due to the big supporing area, slope of up to 6 % can be achieved by the head plate.

It can fit all types of scaffold systems, such as frames, ringlock, or cuplock systems.

Jack heads are always working in conjunction with Jack base to adjust scaffolding sets in a easy way.

Base plate is welded to the tubular screw stem, with a hole in each corner for securing to mudsill.

The screw jack with base plate allows your scaffold set to be leveled on uneven surfaces. Casting iron nut is used on the screw stem, high-strength and galvanized for durability.

ACME threads are used on the screw stem.



Scaffold Base Jack:

Screw /Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 120 x 120 x 5 0.25 2.75 (3.72)
Ø32(solid) x 400 (600) 120 x 120 x 5 0.30 3.10 (4.20)
Ø34(solid) x 400 (600) 120 x 120 x 5 0.40 3.50 (4.76)
Ø34(hollow) x 4 x 400 (600) 150 x 150 x 6 0.55 2.80 (3.39)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 6 0.50 2.90 (3.60)
Ø48(hollow) x 4 (5) x 600 150 x 150 x 8 1.00 5.00 (5.60)
Ø48(hollow) x 4 (5) x 820 150 x 150 x 8 1.00 6.00 (6.80)

U-head Jack:

Screw / Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 150 x 120 x 50 x 5 0.25 3.36 (4.33)
Ø32(solid) x 400 (600) 150 x 120 x 50 x 5 0.30 3.70 (4.81)
Ø34(solid) x 400 (600) 150 x 120 x 50 x 5 0.40 4.10 (5.37)
Ø34(hollow) x 4 x 400 (600) 150 x 120 x 50 x 6 0.55 2.91 (3.74)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 50 x 6 0.50 3.61 (4.28)
Ø48(hollow) x 4 (5) x 600 180 x 150 x 50 x 8 1.00 6.24 (6.82)
Ø48(hollow) x 4 (5) x 820 180 x 150 x 50 x 8 1.00 7.20 (8.00)


Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
--- bundles: timber beam, steel props, tie rod, etc.
--- pallet: small parts will be put in bags and then on pallets.
--- wooden cases: it is available on customer's request.
--- bulk: some irregular goods will be loaded in bulk in container.

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
