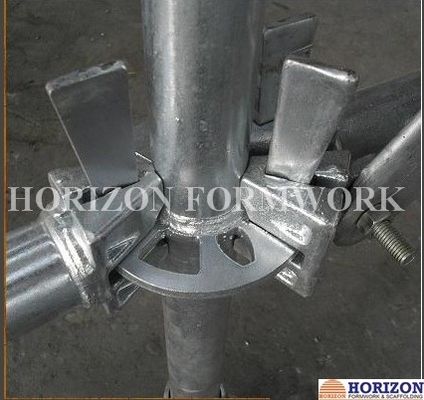

Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material

Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material
Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material

Large Image :  Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material

Product Details:
Place of Origin: China
Brand Name: HORIZON
Model Number: Horizontal ledger 1.0m
Payment & Shipping Terms:
Minimum Order Quantity: 20 tons
Price: pls ask HORIZON
Packaging Details: in pallets / bundles
Delivery Time: 20-25 days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 200 tons per week
Detailed Product Description
Material: Q235 Steel Pipe Finishing: Hot Dip Galvanized
Size: Dia 48.3 X 3.25mm Colour: Customerized
Length: 1.0m Ledger End: Cast Steel
High Light:

pin lock scaffolding system

,

ring system scaffold

Horizontal Ledgers of Ringlock Scaffolding System with Length 1.0m
Ledgers are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks.
Ledgers can also be used as mid rail and top or hand guard rails.

DescriptionTube size (mm)Length (m)Ledger endWeight (Kg)
Ledger 0.548.3 x 3.250.522.83
Ledger 0.748.3 x 3.250.723.55
Ledger 1.048.3 x 3.251.024.63
Ledger 1.248.3 x 3.251.225.35
Ledger 1.548.3 x 3.251.526.44
Ledger 2.048.3 x 3.252.028.24
Ledger 2.548.3 x 3.252.5210.05
Ledger 3.048.3 x 3.253.0211.85

Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material 0
Horizontal Ledgers Ring Lock System Scaffolding Length 1.0m Cast Steel Material 1
Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.


Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.

What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc. On-site supervising support is available on request.

Why us:
With 10 years of experience, we know exactly what you need; Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request. Prompt action on customer's requirments. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.

HORIZON FORMWORK, your reliable formwork partner!
