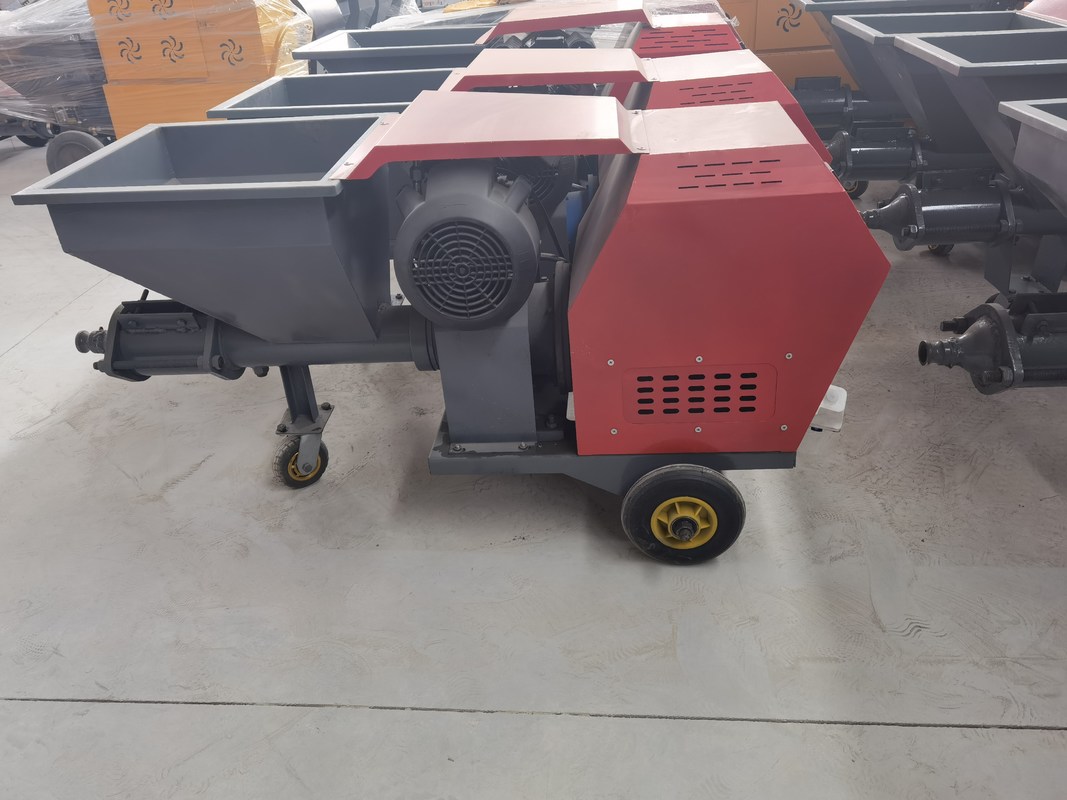

4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine

Large Image : 4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine

Product Details:

Place of Origin:	Xingtai, Hebei
Brand Name:	mingge
Certification:	ISO9001
Model Number:	Model 318Mortar Spraying Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD900-1000/Set
Packaging Details:	1:Packing in special plastic bags 2:Fixed in plastic bags to prevent it from falling off. 3:Seal with wooden box
Delivery Time:	3-15days
Payment Terms:	L/C, T/T
Supply Ability:	300 Set/Sets per Month

Contact Now

Detailed Product Description

Power:	4KW	Voltage:	220V/380V
Input Pressure:	4Mpa	Horizontal Distance:	15m
Capacity:	2m³	Particles:	<3mm
Vertical Distance:	10m	Weight:	150kg
Spraying Speed:	7L/min	Size:	1200450600mm
High Light:	2m3 cement spray machine , 4mpa cement spray machine , 2m3 mortar plastering machine

1. Single cylinder & single-acting, ball valve, quick clamp connection, operation and cleaning conveniently.

2. Adopt special design rubber parts to connect to the feeding and back port, easy to disassemble.

3. V belt and gear transmission, high efficiency, low failure rate.

4. The special design of the working valve chamber ensures the mortar flow easily, small resistance, no deposition.

5. The screen adopts rubber spring with cone bolt installation, convenient disassembly.

6. The mixing shaft in the hopper is directly linked to the piston rod, thus this shaft is synchronously moved with the said piston rod effectively prevent mortar precipitation.

7. Equipped with special mortar nozzle, making spraying operation more smoothly, continuously and reducing the rebound effectively.

4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine 0

Newest mortar cement spraying machine

model	311	318	511	711
Power	4kw	4kw	7.5kw	7.5kw
Voltage	220v/380v	220v/380v	380v	380v
Input pressure	3-6mpa	4mpa	5-8mpa	5mpa
horizontal distance	15m	15m	20m	30m
capacity	2m³	2m³	3-5m³	6m³
particles	＜4mm	＜3mm	＜5mm	＜7mm
vertical distance	10m	10m	15m	20m
Weight	150kg	150kg	220kg	280kg
Spraying speed	6l/min	7l/min	10l/min	20l/min
Size	1600450800mm	1200450600mm	1700550900mm	1800600700mm

4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine 2

Features of putty spraying machine:
1. Adjust the size of the flow, tune out the best coating results.

2. In addition to the electrical control box can switch, but
also equipped with remote control switch spraying.
3. Gun connection with the feeding tube can be rotated for easy operation.
4. High efficiency, good quality.

Details Images

4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine 6

Application Scenarios

4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine 7

Accessories

4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine 8

Product packaging

4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine 9

4mpa Cement Spray Machine , 2m3 Mortar Plastering Machine 10

common problem

1. How long is the delivery time?
It takes about 15 working days to arrive
2. What is the warranty period?
1 year
3. Is there an agent?
We are looking for agents in every country, if you are interested, please feel free to contact us.
4. How do we use the machine?
We will send the English user manual and video together with the device, if not enough, we can teach you online.
5. What is the minimum order quantity:
1 set
6. What is the payment deadline?
30% deposit T/T, if CIF or CFR, the balance will be paid according to the B/L copy. 50% deposit T/T, we will balance the payment after the production is completed.
