Adjustable Concrete Shear Wall H20 Beam Column Formwork System

Adjustable Concrete Shear Wall H20 Beam Column Formwork System
Adjustable Concrete Shear Wall H20 Beam Column Formwork System Adjustable Concrete Shear Wall H20 Beam Column Formwork System Adjustable Concrete Shear Wall H20 Beam Column Formwork System Adjustable Concrete Shear Wall H20 Beam Column Formwork System

Large Image :  Adjustable Concrete Shear Wall H20 Beam Column Formwork System

Product Details:
Place of Origin: CHINA
Brand Name: HORIZON
Model Number: HORIZON WALL FORM
Payment & Shipping Terms:
Minimum Order Quantity: 300 sqm
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per week
Detailed Product Description
Components: H20 Beam, Steel Waling, Panel Strut, Scaffold Bracket OEM: Available
Colour: Yellow & Blue Application: For Wall, Column
Type: Adjustable Wall Formwork Category: Timber Beam Formwork System
Material: Steel Product Name: Concrete Steel Formwork, Formwork For Construction
Packing: Steel Pallet
High Light:

h20 beam wall formwork system

,

h20 beam column formwork system

,

oem column formwork system

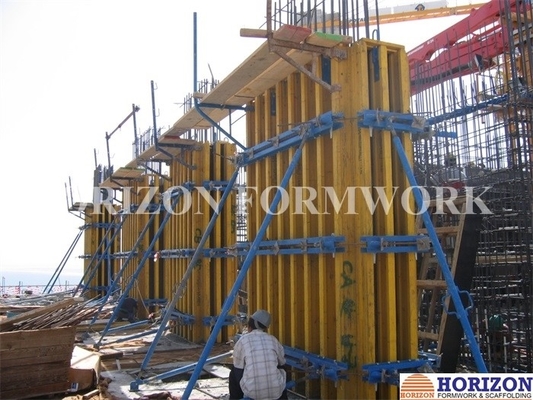

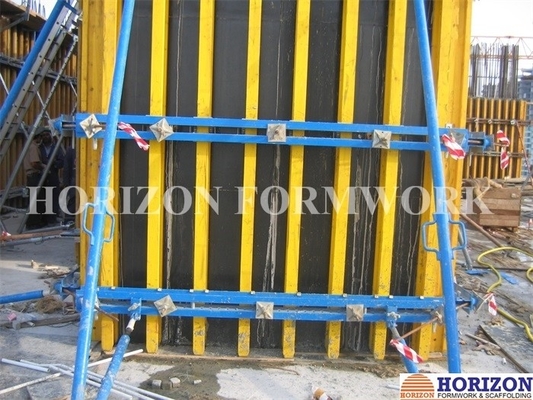

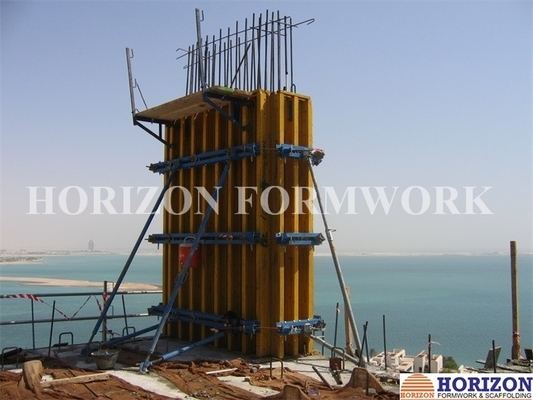

H20 Concrete Wall Formwork Systems and Column Forming systems

High flexibility with a few main components can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc.. These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.
The wall formwork elements are assembled very fast and easily by connecting of H20 beams to the steel walings by means of flange clamp.

Adjustable Concrete Shear Wall H20 Beam Column Formwork System 0
Advantages:
1. The wall formwrok system is used for all types of walls and columns, with high rigidity and stability at low weight.
2. Can choose whichever form face material best meets your requirements - e.g. for smooth fair-faced concrete.
3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.
4. Can be pre-assembled on site or before arrival at site, saving time, cost and spaces.
5. Can match well with most Euro formwork systems.

Components Diagram / photo Specification / description
Wall formwork panel Adjustable Concrete Shear Wall H20 Beam Column Formwork System 1 For all vertical formworks
H20 Timber beam Adjustable Concrete Shear Wall H20 Beam Column Formwork System 2

Water proof treated
Height: 200mm
Width: 80mm
Length: as per table size

Steel waling Adjustable Concrete Shear Wall H20 Beam Column Formwork System 3

Painted, powder coated
[12 steel channel


Flange clamp Adjustable Concrete Shear Wall H20 Beam Column Formwork System 4Adjustable Concrete Shear Wall H20 Beam Column Formwork System 5

Galvanized
To connect steel waling and H20 beams

Panel strut Adjustable Concrete Shear Wall H20 Beam Column Formwork System 6

Painted


Waling connector 80 Adjustable Concrete Shear Wall H20 Beam Column Formwork System 7

Painted
Used for formwork panels alignment

Corner connector 60x60 Adjustable Concrete Shear Wall H20 Beam Column Formwork System 8

Painted
Used for forming inner corner formwork with wedge pins

Top scaffold bracket Adjustable Concrete Shear Wall H20 Beam Column Formwork System 9

Painted,
severs as safety working platform



Adjustable Concrete Shear Wall H20 Beam Column Formwork System 10
