Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab

Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab
Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab

Large Image :  Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab

Product Details:
Place of Origin: China
Brand Name: HORIZON
Certification: SGS
Model Number: Table form
Payment & Shipping Terms:
Minimum Order Quantity: 500 M2
Price: Pls check with HORIZON
Packaging Details: pallets, bundles, bags, etc.
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 M2 per month
Detailed Product Description
Material: Floor Prop, Fork Head, H20 Beam, Plywood Application: Any Slab Concreting
Site Supervision: Available Type: Flex-H20 Slab Form
Specification: Flexible Sizes Supporting: EN1065 Props
High Light:

slab shuttering system

,

table formwork system

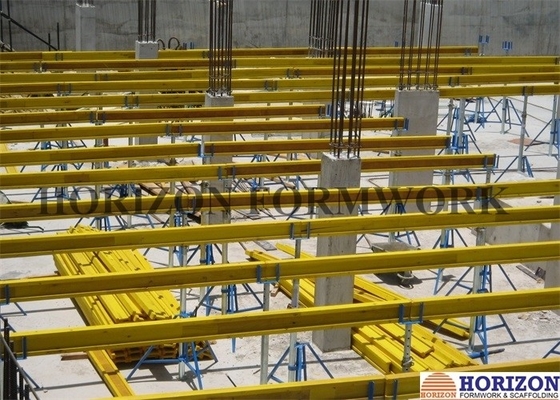

Flex-H20 Slab Formwork System With Universal Components for Floor Concrete


Flex-H20 slab form is a quite flexible timber beam system enabling you to complete any kind of slab pouring very easily, any length, width or thickness. There is no restriction for your applications in any way, but allows you all the versatility you need for perfect concrete work on site.

All the Flex-H20 slab form components are multiply used in HORIZON’s formwork systems. The H20 timber beams, props are well adapted to each other. Combined with 4-way fork head, tripod, supporting head, Flex-H20 is one of the most versatile timber beam formwork systems.

In order to ensure the safety, guardrails are equipped on the H20 beam at edge of slab.



Flex-H20 Slab Formwork Components:

Components Diagram / photo Specification / description
Timber beam H20 Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab 0

Water proof treated

Height: 200mm

Width: 80mm

Length: as per table size

Floor Props Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab 1

Galvanized

As per proposal design

HZP 20-300, 14kg

HZP 20-350, 15.8kg

HZP 30-300, 17.6kg

HZP 30-350, 20.3kg

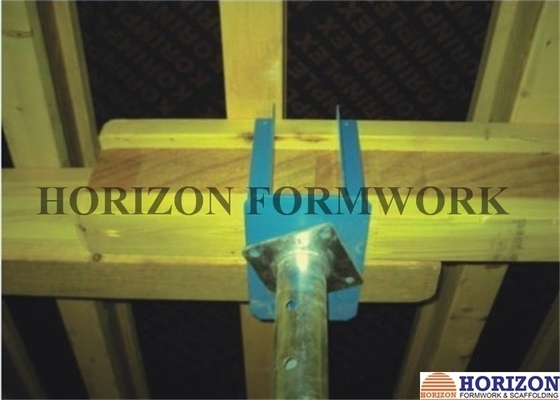

4-way head H20 Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab 2

Galvanized

Length: 220mm

Width: 145mm

Height: 320mm

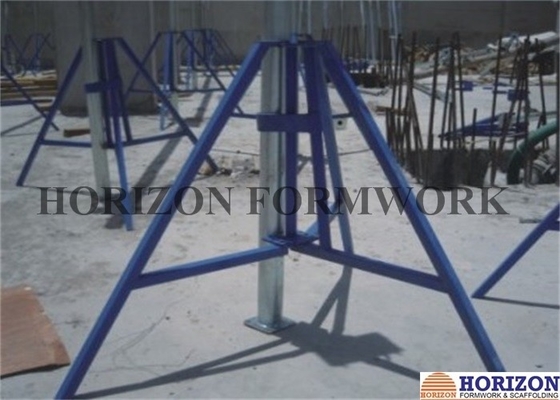

Folding tripod Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab 3

Galvanized

For holding floor props

8.5kg/pc

Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab 4





Flex - H20 Slab Formwork Systems , Solid Floor Prop Formwork For Concrete Slab 5
