Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab

Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab
Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab  Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab  Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab

Large Image :  Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab

Product Details:
Place of Origin: China
Brand Name: HORIZON
Certification: SGS
Model Number: Table form
Payment & Shipping Terms:
Minimum Order Quantity: 500 M2
Price: Pls check with HORIZON
Packaging Details: pallets, bundles, bags, etc.
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 M2 per month
Detailed Product Description
Material: Timber Beam H20, Steel Prop, Plywood Application: Concrete Slab Construction
Site Supervision: Yes Type: Slab Form System
Size: 2.5m X 5m Movable: By Trolley
High Light:

slab shuttering system

,

table formwork system

Cost effective slab formwork system for slab concrete construction

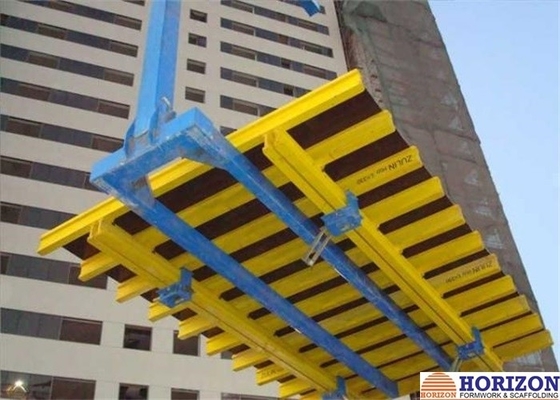

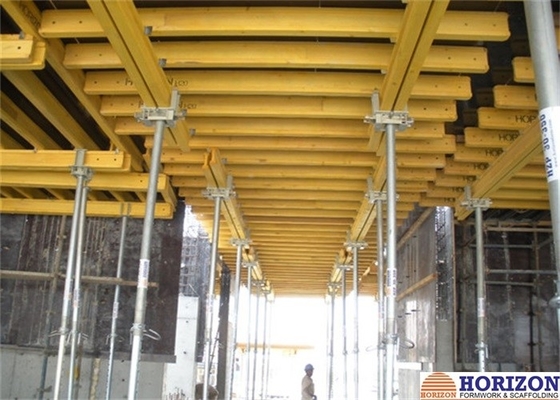

HORIZON’s table formwork is typically used in concreting flat slabs for high-rise commercial towers, residential towers, etc. As the table is assembled in one unit, it can be easily moved horizontally by trolley and vertically by lifting bracket, without being dismantled. In this way, the table form system provides a perfect solution with less cost and high efficiency when pour slab concrete on site.


Advantages:

  • High load-bearing capacity of props are used in HORIZON table forms.
  • Very easy installation to required dimensions and height level of the table, by adjusting props.
  • It’s quite convenient to strip or relocate the tables by using trolley and lifting bracket.
  • Large table size upto 15 m2 is easily transferred in one single crane lift.

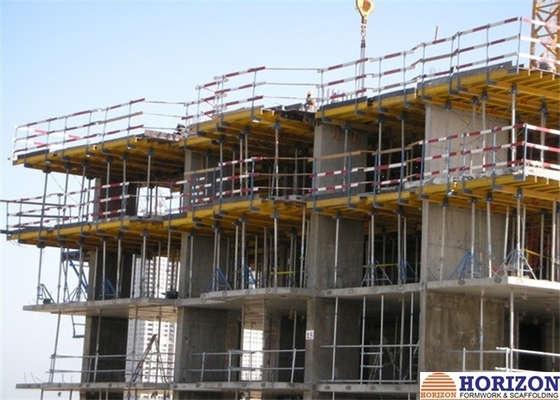

  • High safety measures are ensured by applying guard rails to edge tables.



Table formwork components:

Components Diagram / photo Specification / description
Timber beam H20 Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab  0

Water proof treated

Height: 200mm

Width: 80mm

Length: as per table size

4.8kg/m

Table head Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab  1

Painted

Length: 280mm

Width: 235mm

Height: 300mm

17kg

Floor Props Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab  2

Galvanized

As per proposal design

HZP 20-300, 14kg

HZP 20-350, 15.8kg

HZP 30-300, 17.6kg

HZP 30-350, 20.3kg

4-way head H20 Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab  3

Galvanized

Length: 220mm

Width: 145mm

Height: 320mm

2.5kg

Folding tripod Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab  4

Galvanized

For holding floor props

8.5kg





Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.

Steel Prop Slab Formwork Systems , Trolley Movable Shuttering For Concrete Slab  5
