Drop Beams Slab Formwork Systems , Metal Formwork For Beams Columns And Slabs

Drop Beams Slab Formwork Systems , Metal Formwork For Beams Columns And Slabs
Drop Beams Slab Formwork Systems , Metal Formwork For Beams Columns And Slabs Drop Beams Slab Formwork Systems , Metal Formwork For Beams Columns And Slabs

Large Image :  Drop Beams Slab Formwork Systems , Metal Formwork For Beams Columns And Slabs

Product Details:
Place of Origin: China
Brand Name: HORIZON
Certification: SGS
Model Number: Beam formwork
Payment & Shipping Terms:
Minimum Order Quantity: 500 M2
Price: Pls check with HORIZON
Packaging Details: pallets, bundles, bags, etc.
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 M2 per month
Detailed Product Description
Material: Beam Forming Support, Steel Prop, Fork Head Application: Drop Beam Construction
Site Supervision: Available Type: Beam Forming Support
Beam Height: Max. 900mm Supporting: Scaffold Steel Props
High Light:

slab shuttering system

,

slab scaffolding system

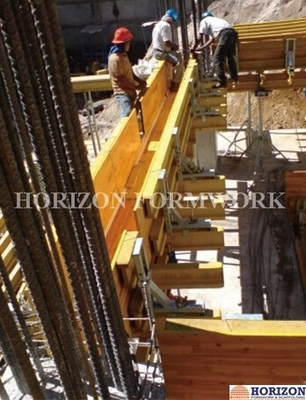

Beam Forming Support for Constructing Drop Beams with H20 Slab Formwork


Drop beams are always designed in many projects, which seems troublesome and cost money while constructing such beams. Now, HORIZON beam clamps can help reduce work and cost. With extension height of 410mm, the beam clamps are workable for beams height up to 760mm.

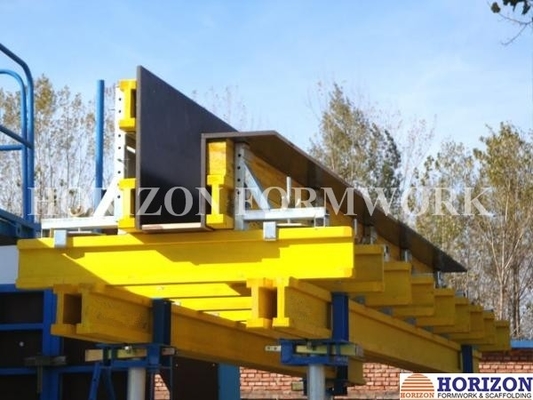

The beam clamp is connected to a H20 beam by easy tightening the wing nut. The timber beam is part of the bottom shuttering of the concrete beam.

The beam formwork can be combined with any slab formwork system.

Similar as Flex-H20 slab formwork stripping, it’s very easy to strip the beam formwork.

Loose the wing nut that locking the beam clamp, move back the beam clamp and take the lateral timber beam (or wood plank). Then remove the beam clamp. Now, the beam formwork and slab formwork can be taken down separately easily.



Drop Beams Slab Formwork Systems , Metal Formwork For Beams Columns And Slabs 0







Beam height

H (cm)

Max. Distance of beam clamps

Without slab

(m)

With slab t=20cm

(m)

With slab t=30cm

(m)

30 2.25 1.5 1.25
35 2.00 1.25 1.00
40 1.75 1.05 0.9
45 1.50 0.95 0.8
50 1.35 0.85 0.7
55 1.30 0.75 0.60
60 1.05 0.65 0.50
65 0.9 0.50 0.40
70 0.80 0.40 0.35
75 0.60 0.30
80 0.55
85 0.45
90 0.35



Drop Beams Slab Formwork Systems , Metal Formwork For Beams Columns And Slabs 1

Drop Beams Slab Formwork Systems , Metal Formwork For Beams Columns And Slabs 2

Who we are:

HORIZON FORMWORK is a professional formwork solution provider for years, supplying: formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.



What we offer:

Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc. On-site supervising support is available on request.



Why us:

With 10 years of experience, we know exactly what you need; Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request. Prompt action on customer's requirments. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.



HORIZON FORMWORK, your reliable formwork partner!
