Q345 Steel Ringlock Scaffolding System For Contracting Work , HDG Finishing

Q345 Steel Ringlock Scaffolding System For Contracting Work , HDG Finishing
Q345 Steel Ringlock Scaffolding System For Contracting Work , HDG Finishing Q345 Steel Ringlock Scaffolding System For Contracting Work , HDG Finishing

Large Image :  Q345 Steel Ringlock Scaffolding System For Contracting Work , HDG Finishing

Product Details:
Place of Origin: China
Brand Name: HORIZON
Model Number: Ringlock scaffold System
Payment & Shipping Terms:
Minimum Order Quantity: 20 tons
Price: pls ask HORIZON
Packaging Details: in pallets / bundles
Delivery Time: 20-25 days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 200 tons per week
Detailed Product Description
Material: Q345 Steel Pipe Finishing: HDG, E-galvanized, Powder Coated
Size: Dia 48.3 (60mm) X 3mm/ 3.25mm OEM: Available
Colour: Customerized Application: For Building Construction
High Light:

pin lock scaffolding system

,

ring system scaffold

Q345 Steel Ringlock Scaffolding System For Contracting Work, HDG Finishing



Ringlock system mainly includes: standard, ledger, diagonal braces.



Standars specifications:

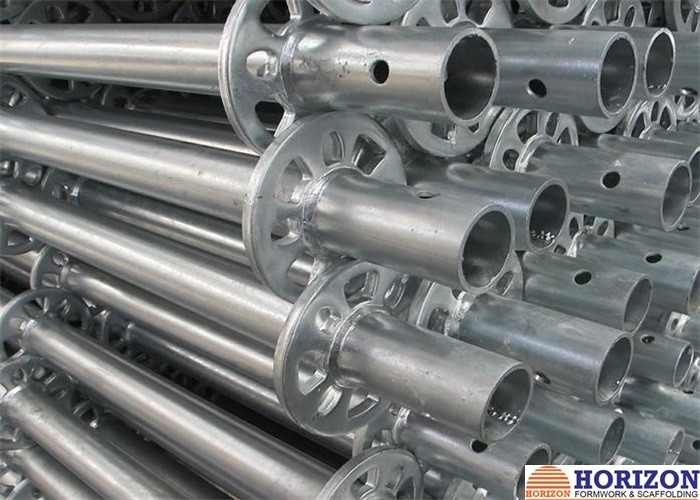

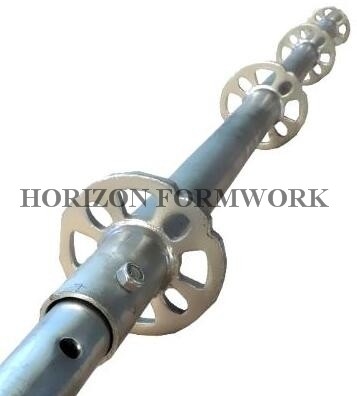

Standards are the vertical supporting members, made of high-strength steel tube. Rosettes are welded on the standards every 0.5m intervals and provide the integral node connection.

The standards are compatible with other ringlock scaffolding systems.

Built-in spigots are equipped for end-to-end connections.

Description Tube size (mm) Height (m) Rosette Spigot Weight (Kg)
Standard 0.5 48.3 x 3.25 0.5 1 1 2.8
Standard 1.0 48.3 x 3.25 1.0 2 1 5.1
Standard 1.5 48.3 x 3.25 1.5 3 1 7.4
Standard 2.0 48.3 x 3.25 2.0 4 1 9.7
Standard 2.5 48.3 x 3.25 2.5 5 1 12.1
Standard 3.0 48.3 x 3.25 3.0 6 1 14.3
Standard 4.0 48.3 x 3.25 4.0 8 1 18.9



Ledger specifications:

Ledgers are the horizontal members of Ringlock scaffolding. They provide horizontal support for loads and planks.

Ledgers can also be used as mid rail and top or hand guard rails.

Description Tube size (mm) Length (m) Ledger end Weight (Kg)
Ledger 0.5 48.3 x 3.25 0.5 2 2.83
Ledger 0.7 48.3 x 3.25 0.7 2 3.55
Ledger 1.0 48.3 x 3.25 1.0 2 4.63
Ledger 1.2 48.3 x 3.25 1.2 2 5.35
Ledger 1.5 48.3 x 3.25 1.5 2 6.44
Ledger 2.0 48.3 x 3.25 2.0 2 8.24
Ledger 2.5 48.3 x 3.25 2.5 2 10.05
Ledger 3.0 48.3 x 3.25 3.0 2 11.85



Vertical Diagonal Braces:

Vertical Diagonal Braces are used for the lateral bracing of Ringlock scaffolding system. They can also be used as compression and tension members for cantilevers where they transmit loads back into the main scaffold structure. Diagonal Braces are also used for handrails in the Ringlock Steel Stair System. Other sizes are available on request.

Description Height (m) Width (m)
VDB 0.5m x 2.0m 2.0 0.5
VDB 0.7m x 2.0m 2.0 0.7
VDB 1.0m x 2.0m 2.0 1.0
VDB 1.2m x 2.0m 2.0 1.2
VDB 1.5m x 2.0m 2.0 1.5
VDB 2.0m x 2.0m 2.0 2.0
VDB 2.5m x 2.0m 2.0 2.5
VDB 3.0m x 2.0m 2.0 3.0



Q345 Steel Ringlock Scaffolding System For Contracting Work , HDG Finishing 0

Ringlock System Scaffolding is specially designed for heavy duty construction, with a quite simple way of assembly by wedge locks and pipe. It can be used in many commercial and industrial projects, such as: stair tower, bridge support, tunnel support, power plant etc.



Advantages:

Quite simple and fast to assemble;

Cost-effective and save time;

Flexible right angles to meet site work requirements;

Various height available by different components combination.
