|Application:||For Tensioning Wire Tie Bar||Samples:||Available|
construction formwork accessories,
concrete wall form accessories

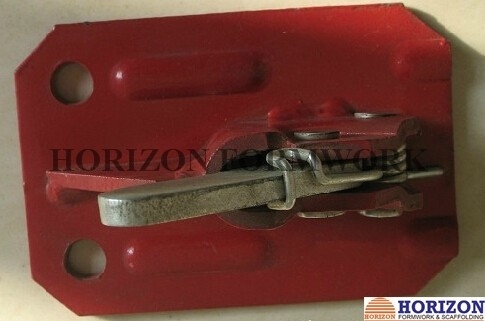

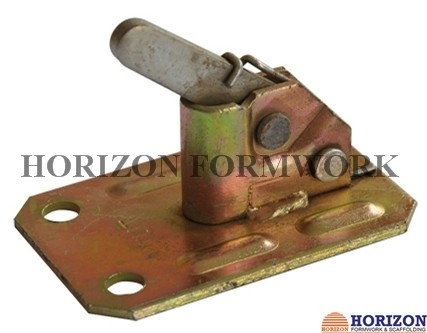

Rapid Concrete Forming Clamps With Spring for Tensioning Wire Tie Bar
Spring rapid clamp is a fast and effective method for securing wire tie bars in light formwork applications.
Tensioner tools are used to pull the wire tie bar through the clamp.
Wire tie bar diameter from 5-10mm can pass through the spring clamp.
Main application: bracing formwork when being used for foundations or applied to beam formwork.
6mm tension bar appr. 4KN
8mm tension bar appr. 7KN
10mm tension bar appr. 11KN
|Bar Ø (mm)||Plate size (mm)||Weight (Kg)|
|5-10||69 x 105 x 3||0.33|
|5-10||75 x 110 x 4||0.42|
