Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform

Certification
Good quality Wall Formwork Systems for sales
Good quality Wall Formwork Systems for sales
Customer Reviews
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Laura

This mutual cooperation last for about 4 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Kresimir Brebric

I'm Online Chat Now

Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform

China Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform supplier
Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform supplier Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform supplier Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform supplier

Large Image :  Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform

Product Details:

Place of Origin: CHINA
Brand Name: HORIZON
Model Number: Climbing bracket

Payment & Shipping Terms:

Minimum Order Quantity: 100 sets
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 tons per week
Contact Now
Detailed Product Description
Material: Steel Waling, Climbing Bracket, Panel Strut OEM: Available
Colour: Yellow & Blue Working Platform: 2.4m
Climbing Style: By Crane Application: For Core Wall, Bridge, Etc.
High Light:

jump formwork system

,

climbing scaffolding system

Climbing Sequence of Climbing Bracket System for High-rise Wall Construction

Climbing Formwork CB240 is a crane dependent climbing system and support structure widely used to pour high walls. It performs as a loading-bearing platform as well as a safe working platform. Depending on the length of the platform, the Climbing System is applicable to heights of more than 100 m over ground and allows a maximum formwork height of up to 5.40 m.
Advantages:
Platform width:      2.4m
Roll-back system:  70 cm with carriage and rack system
Finishing platform: for removing the climbing cone, polishing concrete surface etc.
Anchor system:     should be pre-fixed into the formwork and left in the concrete after pouring.
Formwork:            can be moved horizontally, vertically and tilted to meet site requirement.
Main platform:       provide workers a safe working platform
Finishing platform: there is an access to the main platform by using a safety ladder.


Climbing sequence:

Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform

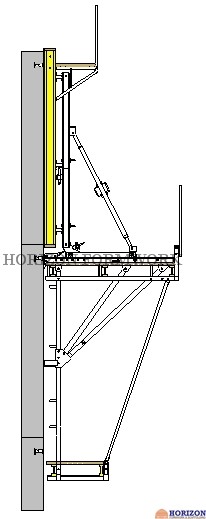

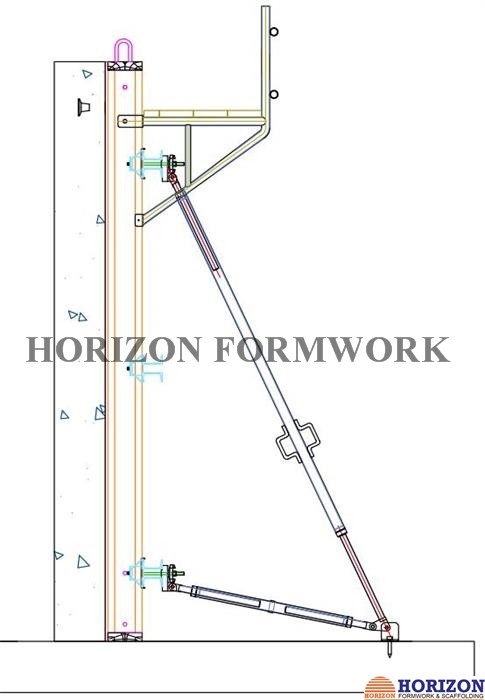

Step 1
The first pouring is to be completed by using the proper wall elements and has to be exactly
aligned with adjusting struts.

Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform

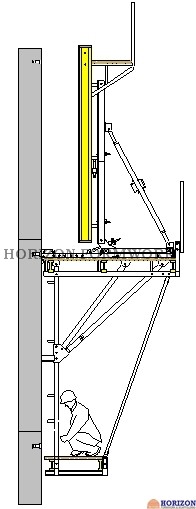

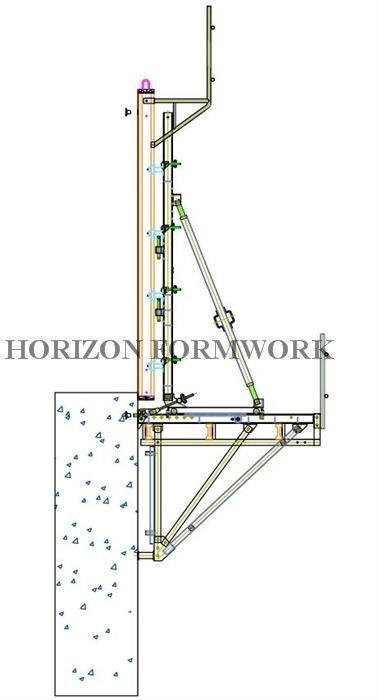

Step 2
The completely pre-assembled climbing scaffold units consisting of
climbing brackets with plank bottom and bracing have to be attached to the bracket anchoring and secured.
Then the formwork and the move-off carriage together with the aligning beam has to be positioned on the brackets and fixed.

Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform
Step 3
After shifting the climbing scaffold unit to the next pouring position the finishing platform is to be mounted to the brackets to complete the climbing system.

Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform
Step 4
Release and remove bolts that fixing the positioning anchor point.
Loosen and remove tie-rod
Loosen the wedges of the carriage unit.

Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform
Step 5

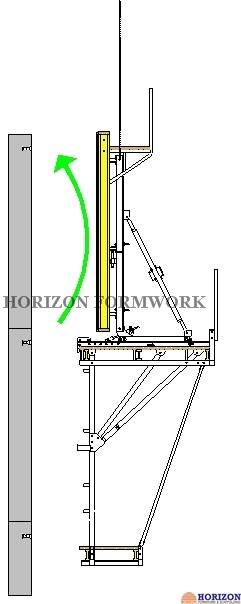

Retract the carriage and lock it with wedge.
Install upper climbing cones
Loosen wind securing device, if any
Remove the lower climbing cone

Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform
Step 6
Adjust the carriage into the common center of gravity and lock it again.
Attach the crane sling to the vertical waling
Remove the security bolts of the bracket
Lift the climbing bracket by crane and attach it to the next prepared climbing cone.
Insert and lock the security bolts again.
Install the wind-load device, if required.


Step 7
Move the carriage back and lock it by wedge.
Clean the formwork.
Install reinforcement bars.



Step 8
Move the formwork forward until lower end rests against top of the finished section of the wall
Adjust formwork vertically by means of push-pull brace.
Fix tie-rods for the wall formwork


Light Weight Climbing Formwork System , Self Climbing Scaffold 2.4m Platform
