OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

China OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load supplier
OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load supplier OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load supplier OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load supplier

Large Image :  OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

Product Details:

Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: HORIZON FORMTIE

Payment & Shipping Terms:

Minimum Order Quantity: 10 tons
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 tons per week
Contact Now
Detailed Product Description
Features: Anti-rust,high Breaking Strength Material: 45# Steel Rod
OEM: Available Finishing: Natrual Colour, Zinc-plate
Size: Dia 15/17mm, 20/22mm Application: To Hold And Fasten Formwork Panels
Length: L=6m Or As Per Request Samples: Available
Product Name: Concrete Steel Formwork Tie Nut,Peri Formwork Tie Rod Nut Usage: Used To Fix And Fasten Formwork System,Concrete Construction Fasten,Core Wall Concrete Casting
High Light:

shuttering tie rod

,

tie rod scaffolding

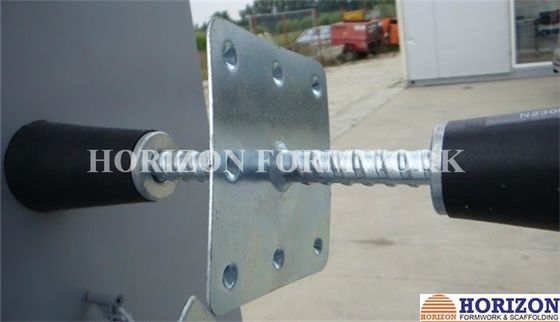

Formwork Tie Rod For Construction , Dywidag Thread Bar 145KN Load



Formwork tie rod performs as the most important member in tie rod system, holding formwork panels. Usually used together with wing nut, waler plate, water stop, etc. Also it is enbeded in concrete used as lost part.



Tie rod diameter 15/17mm, minor dia 15mm and major dia 17mm
Max. load  145KN
Length Any length within L=6 meters
Material 45# steel, equal to AISI 1045
Other sizes available n request, such as D20mm, D22mm, etc.



Part Name Specification Weight (kg) Remark

Tie-rod

OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

D15

D20

1.52 kg/m

2.71 kg/m

L=6m;

Special length available upon request.

Wing nut

OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

D15

D20

0.35

0.70

For tie-rod D15 / D20

Super plate

OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

D15 1.28 Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut

OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

D15

D20

0.97

0.78

For tie-rod D15;

For tie-rod D20

Waling plate

OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

120 x 120 x 6, Φ19

120 x 120 x 8, Φ19

0.65

0.85

For tie-rod and nut D15;

galvanized

Water stopper

OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

D15

D20

0.55

0.72

Used in water resistant wall;

With tie-rod D15 / D20

Anchor plate

OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load

D20 0.95 Embedded in concrete as lost part

OEM Formwork Tie Rod System For Construction , Dywidag Thread Bar 145KN Load


Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.
