|Material:||Q235, Steel Pipe||OEM:||Available|
|Finishing:||Painting, Zinc-plate, Powder Coating, HDG||Standard:||EN1065|
|Size:||2.0m-3.5m||Application:||For Building Slab Formwork Costruction|
|Type:||Push-pull Prop||Length:||Adjustable Length|
en1065 scaffolding steel prop,
oem shoring props,
en1065 shoring props

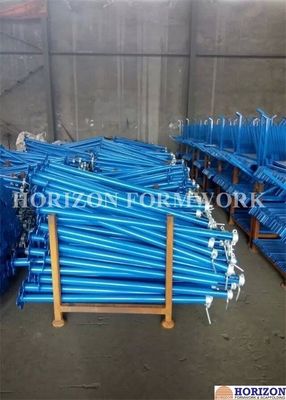

Push-pull Metal Props for Scaffolding Shoring in Formwork Construction
Light weight scaffold post shores are used for supporting work in building slab construction, with working height range from 0,50-0,80 m upto 3,00-5,50 m.
Two end plates, upper and lower plates, help hold and stablize the post shore in place.
The inner tube is made from pipe Ø 48 mm (thickness from 2 mm to 4.0mm) with holes to adjust the working height with help of the pin.
The outer tube is made from pipe Ø56 mm (thickness from 1.6 mm to 2.5mm).
The pin diameter is between 12 and 14 mm, with a special design that does not allow its fall.
The thread is covered by a cup-type nut that has 2 side handles for easy handling.
A steel ring plate is also equipped on the nut that prevents concrete materials falling into the nut and get stuck.
Outer tube (mm)
Inner tube (mm)
|1.7m-3.0m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
|2.0m-3.6m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
|2.2m-4.0m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
|2.5m-4.5m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
|3.0m-5.5m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
