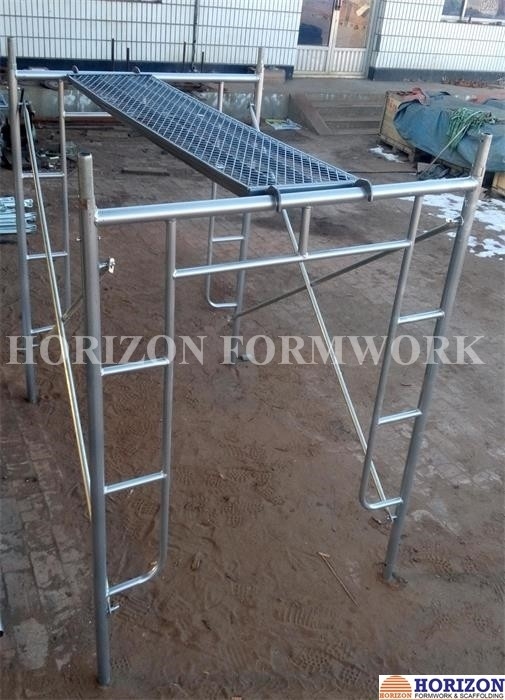

Open End Frame Scaffolding System of Height 1930mm with Steel Stairs

Open End Frame Scaffolding System of Height 1930mm with Steel Stairs

Very few components: frame, cross brace, joint pins, plank; some time also includes: jack base, cater wheels.

All the components are standard. It is very easy to assemble and dismantle, which save much time and labor cost.

When used as movable working platform, caster wheels are always required at the bottom, especially for indoor painting or decoration work; When used as supporting system, jack base and U head are always required to adjust the working height, especially for slab concrete or bridges constructions.

Various finishing: painting, powder coating, galvanization, etc.

Proper surface treatment is to protect frames against rust or corrosion, making the frame scaffolding durable long life span.

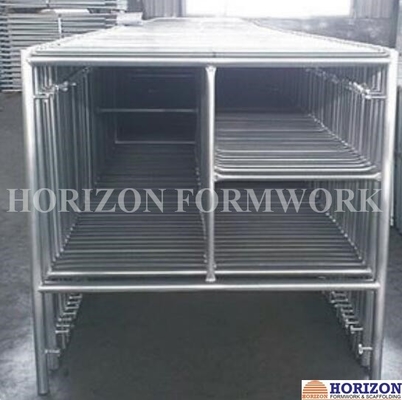

Main frames

Frame Scaffolding	W x H (mm)	Main Frame size(mm)
	1219 x 1930 1219 x 1700 1219 x 1524 914 x 1930 914 x 1700 914 x 1524	42(43) x 2.5mm, 2.2mm, 2.0mm, 1.8mm
	1219 x 1219 1219 x 914 914 x 914	42(43) x 2.5mm, 2.2mm, 2.0mm, 1.8mm

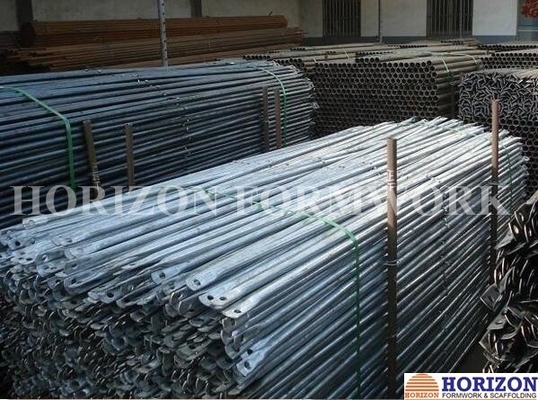

Cross Diagonal Brace
Frame Height(mm)	B (mm)	A (mm)	C (mm)	Weight (Kg)
1930, 1700, 1524	1219	1829	2198	3.17
1930, 1700, 1524	1219	1524	1952	2.81
1930, 1700, 1524	1219	1219	1724	2.49
1930, 1700, 1524	1219	1800	2174	3.13
1219	914	1829	2045	2.95
1219	914	1524	1777	2.56
1219	914	1219	1524	2.2
914	610	1829	1928	2.78
914	610	1524	1642	2.37
914	610	1219	1363	1.97
914	610	1800	1900	2.74
