|Material:||Timber Beam H20, Steel Prop, Plywood||Application:||For Pouring Slab|
|Site Supervision:||Yes||Type:||Decking Form System|
|Size:||2.5m X 4m||Movable:||By Trolley And Lifting Bracket|
|Height:||Up To 5.0m||Plywood:||Film Faced WBP 1220x2440x18mmmm|
|Feature:||Efficient, Easy Operation, High Safety|
slab shuttering system,
slab scaffolding system

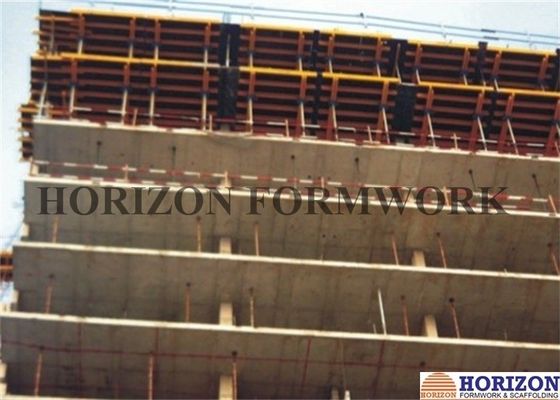

HORIZON’s table formwork (Formwork scaffolding system) is typically used in concreting flat slabs for high-rise commercial towers, residential towers, etc. As the table is assembled in one unit, it can be easily moved horizontally by trolley and vertically by lifting bracket, without being dismantled. In this way, the table form system provides a perfect solution with less cost and high efficiency when pour slab concrete on site.
1. The table formwork is assembled on site and shifted from one area to another without dismantling, thus minumising added risks in erection and dismantling.
2. Very easy assembly, erection and striping, which reduce labor cost. The primary beams and secondary beams are connected by means of table head and angle plates.
3. Safety. Handrails are available and assembled in all the perimeter tables, and all these work are done at ground before the tables are put in place.
4. The table height and leveling is quite easy to adjust by means of adjusting props height.
5. The tables are easy to move horizontally and vertically with help of trolley and crane.
Table formwork components (Formwork scaffolding system items):
|Components||Diagram / photo||Specification / description|
|Timber beam H20||
Water proof treated
Length: as per table size
As per proposal design
HZP 20-300, 14kg
HZP 20-350, 15.8kg
HZP 30-300, 17.6kg
HZP 30-350, 20.3kg
|4-way head H20||
For holding floor props
