Eco - Friendly Slab Formwork Systems , Flying Table Formwork For Slab Concrete

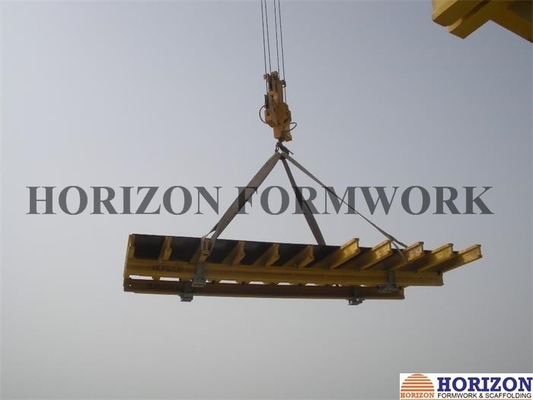

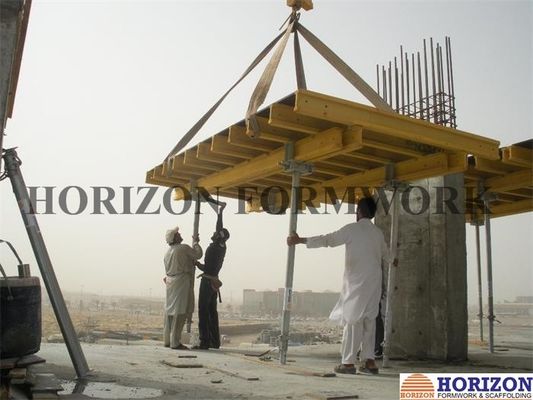

HORIZON’s table formwork is typically used in concreting flat slabs for high-rise commercial towers, residential towers, etc. As the table is assembled in one unit, it can be easily moved horizontally by trolley and vertically by lifting bracket, without being dismantled. In this way, the table form system provides a perfect solution with less cost and high efficiency when pour slab concrete on site.

Normally, there are 4 standard table sizes for most projects.

- 2.50 x 4.00 m

- 2.50 x 5.00 m

- 2.00 x 4.00 m

- 2.00 x 5.00 m

Advantages:
1. The table formwork is assembled on site and shifted from one area to another without dismantling, thus minumising added risks in erection and dismantling.
2. Very easy assembly, erection and striping, which reduce labor cost.
3. Safety. Handrails are available and assembled in all the perimeter tables, and all these work are done at ground before the tables are put in place.
4. The table height and leveling is quite easy to adjust by means of adjusting props height.
5. The tables are easy to move horizontally and vertically with help of trolley and crane.
6. Can match well with most Euro formwork systems such as Doka, Peri, etc.

Table formwork components:

Components	Diagram / photo	Specification / description
Timber beam H20		Water proof treated Height: 200mm Width: 80mm Length: as per table size 4.8kg/m
Table head		Painted Length: 280mm Width: 235mm Height: 300mm 17kg
Floor Props		Galvanized As per proposal design HZP 20-300, 14kg HZP 20-350, 15.8kg HZP 30-300, 17.6kg HZP 30-350, 20.3kg
4-way head H20		Galvanized Length: 220mm Width: 145mm Height: 320mm 2.5kg
Folding tripod		Galvanized For holding floor props 8.5kg

Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.

Who we are:

HORIZON FORMWORK is a professional formwork solution provider for years, supplying: formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.

What we offer:

Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc. On-site supervising support is available on request.

Why us:

With 10 years of experience, we know exactly what you need; Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request. Prompt action on customer's requirments. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.

HORIZON FORMWORK, your reliable formwork partner!
