Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size

Certification
China HORIZON FORMWORK CO., LTD. certification
China HORIZON FORMWORK CO., LTD. certification
Customer Reviews
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Laura

This mutual cooperation last for about 4 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Kresimir Brebric

I'm Online Chat Now

Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size

Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size
Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size

Large Image :  Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size

Product Details:
Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: tie rod system
Payment & Shipping Terms:
Minimum Order Quantity: 5000 pcs
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 pcs per week
Detailed Product Description
Material: Ductile Cast Iron OEM: Available
Finishing: Natrual Colour, Galvanized Size: 75mm, 100mm
Application: For Watertight Walls Weight: 0.34kg, 0.62kg, As Per Request
Samples: Available Tech. Process: Cast Iron, Steel Machinary
High Light:

shuttering tie rod

,

tie rod scaffolding

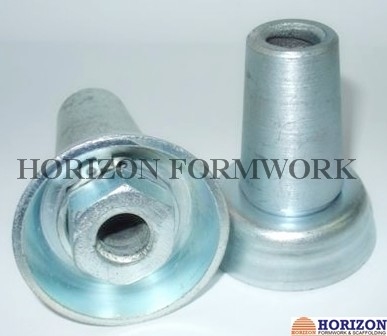

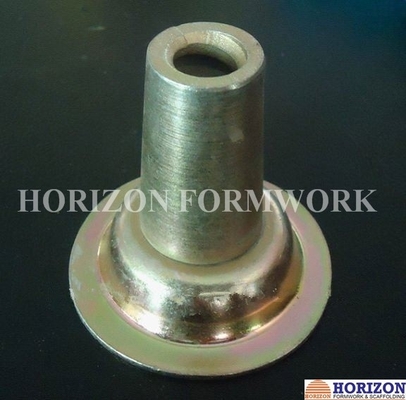

Steel Cone with Removable Cover for Construction of Watertight Concrete Walls



Steel cones are used for applications such as the construction of watertight concrete walls. The cones are supported at the inner side of the formwork and are fastened from the outside using a thread bar and a washer plate, flanged wing nut or equivalent accessories. Size accuracy of the formwork distance is achieved by using a lost tie rod (or with water stop).



The steel cones are loosened via an easily accessible hex in the cone cover. The matching PE sleeve facilitates the loosening of the cone. The slim edge cover defines a clear hole that can be easily closed with mortar. However, it leaves a clearly visible indentation in the formwork skin if the outer thread bar is overtightened. The wide edge cover prevents damages to the formwork skin.

The hole that remains after unscrewing must be closed elaborately.

Steel cone Bar Ø (mm) Ø1/Ø2/ØD (mm) Length (mm) Hex (mm) Weight (Kg)
Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size 0 15 27/35/64 75 27 0.34
15 27/35/74 75 27 0.38
15 27/42/74 100 27 0.62

Ø1, small cone diameter

Ø2, big cone diameter

ØD, cover diameter

Part Name

Specification Weight (kg) Remark

Tie-rod

Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size 1

D15

D20

1.5 kg/m

2.7 kg/m

L=6m;

Special length available upon request.

Super plate

Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size 2

D15 1.28 Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut

Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size 3

D15

D20

0.97

0.78

For tie-rod D15;

For tie-rod D20

Waling plate

Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size 4

120 x 120 x 6, Φ19

120 x 120 x 8, Φ19

0.65

0.85

For tie-rod and nut D15;

galvanized

Water stopper

Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size 5

D15

D20

0.55

0.72

Used in water resistant wall;

With tie-rod D15 / D20

Anchor plate

Concrete Walls Formwork Tie Rod System Steel Cone Removable Cover 75mm Size 6

D20 0.95 Embedded in concrete as lost part


Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.


Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.

Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.


What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.


Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.

We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
