ACME Threaded Scaffold Screw Jack with Cast Base Plate and U Heads

ACME Threaded Scaffold Screw Jack with Cast Base Plate and U Heads

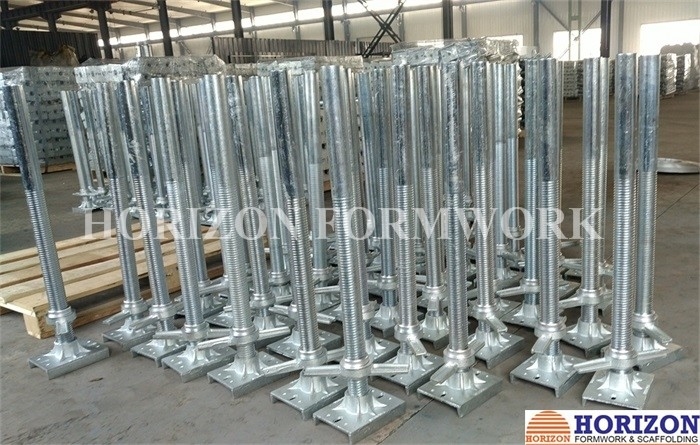

Made from high strength steel pipes, this dia 48mm screw jacks are equipped with 150 x 150 mm head plate to support and stabilize horizontal timber beam or steel beams in slab construction.

Always working in conjunction with Jack base, jack head fits all types of scaffold systems, such as frames, ring-lock, or cuplock systems. Iti's quite a easy way to adjust scaffolding sets working height.

The screw jack with base plate allows your scaffold set to be leveled on uneven surfaces. Casting iron nut is used on the screw stem, high-strength and galvanized for durability.

ACME threads are used on the screw stem.

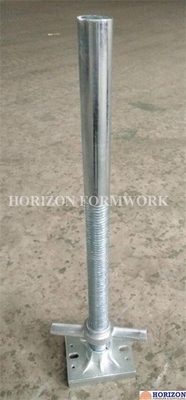

Scaffold Base Jack:

	Screw /Tube size (mm)	Base plate (mm)	Nut (kg)	Weight (kg)
	Ø30(solid) x 400 (600)	120 x 120 x 5	0.25	2.75 (3.72)
	Ø32(solid) x 400 (600)	120 x 120 x 5	0.30	3.10 (4.20)
	Ø34(solid) x 400 (600)	120 x 120 x 5	0.40	3.50 (4.76)
	Ø34(hollow) x 4 x 400 (600)	150 x 150 x 6	0.55	2.80 (3.39)
	Ø38(hollow) x 4 x 400 (600)	150 x 150 x 6	0.50	2.90 (3.60)
	Ø48(hollow) x 4 (5) x 600	150 x 150 x 8	1.00	5.00 (5.60)
	Ø48(hollow) x 4 (5) x 820	150 x 150 x 8	1.00	6.00 (6.80)

U-head Jack:

	Screw / Tube size (mm)	Base plate (mm)	Nut (kg)	Weight (kg)
	Ø30(solid) x 400 (600)	150 x 120 x 50 x 5	0.25	3.36 (4.33)
	Ø32(solid) x 400 (600)	150 x 120 x 50 x 5	0.30	3.70 (4.81)
	Ø34(solid) x 400 (600)	150 x 120 x 50 x 5	0.40	4.10 (5.37)
	Ø34(hollow) x 4 x 400 (600)	150 x 120 x 50 x 6	0.55	2.91 (3.74)
	Ø38(hollow) x 4 x 400 (600)	150 x 150 x 50 x 6	0.50	3.61 (4.28)
	Ø48(hollow) x 4 (5) x 600	180 x 150 x 50 x 8	1.00	6.24 (6.82)
	Ø48(hollow) x 4 (5) x 820	180 x 150 x 50 x 8	1.00	7.20 (8.00)

Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
--- bundles: timber beam, steel props, tie rod, etc.
--- pallet: small parts will be put in bags and then on pallets.
--- wooden cases: it is available on customer's request.
--- bulk: some irregular goods will be loaded in bulk in container.

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
