Internal Thread Scaffolding Steel Prop 3.5m With Cast Handle Painting Surface

Certification
China HORIZON FORMWORK CO., LTD. certification
China HORIZON FORMWORK CO., LTD. certification
Customer Reviews
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Laura

This mutual cooperation last for about 4 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Kresimir Brebric

I'm Online Chat Now

Internal Thread Scaffolding Steel Prop 3.5m With Cast Handle Painting Surface

Internal Thread Scaffolding Steel Prop 3.5m With Cast Handle Painting Surface
Internal Thread Scaffolding Steel Prop 3.5m With Cast Handle Painting Surface Internal Thread Scaffolding Steel Prop 3.5m With Cast Handle Painting Surface Internal Thread Scaffolding Steel Prop 3.5m With Cast Handle Painting Surface

Large Image :  Internal Thread Scaffolding Steel Prop 3.5m With Cast Handle Painting Surface

Product Details:
Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: Steel PROP
Payment & Shipping Terms:
Minimum Order Quantity: 2000 pcs
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 20000 pcs per week
Detailed Product Description
Material: Q235 Steel Pipe, Cast Iron Nut OEM: Available
Finishing: Painting, Zinc-plate, Powder Coating Standard: EN1065
Size: 2.0m-3.5m Application: For Building Slab Costruction
High Light:

adjustable steel props

,

push pull props

Inner Thread Steel Props 3.5 m with Cast Handle Nut Painted Surface



This steel prop is used for supporting work in buildings slab construction, with working height range from 2.0 m-3.5 m.

Two end plates, upper and lower plates, serve to give stability to the steel prop.

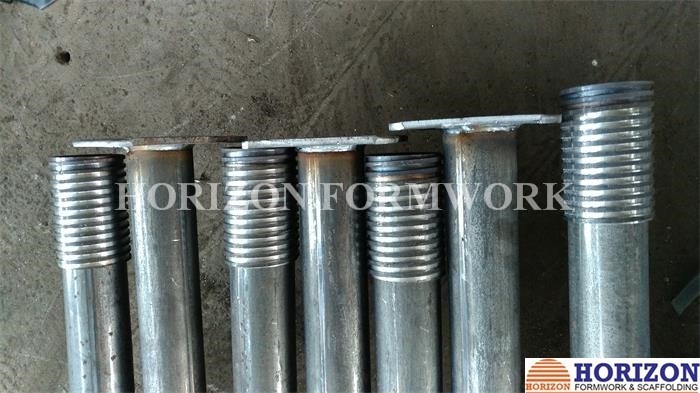

The inner tube is Ø 48.3 mm x 3.0mm with holes to adjust the working height with help of the pin.

The outer tube is Ø57 mm (thickness from 1.6 mm to 2.5mm).

The pin diameter is 14 mm, with a special design that does not allow its fall.

The thread is covered by a cup-type nut that has 2 side handles for easy handling.

A steel ring plate is also equipped on the nut that prevents concrete materials falling into the nut and get stuck.



Height Range

Outer tube (mm)

Inner tube (mm)

Thickness (mm)

Adjusting device
1.7m-3.0m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.0m-3.6m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.2m-4.0m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.5m-4.5m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
3.0m-5.5m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread

Internal Thread Scaffolding Steel Prop 3.5m With Cast Handle Painting Surface 0


Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
--- bundles: timber beam, steel props, tie rod, etc.
--- pallet: small parts will be put in bags and then on pallets.
--- wooden cases: it is available on customer's request.
--- bulk: some irregular goods will be loaded in bulk in container.
