Material: | Q235 Steel Pipe | OEM: | Available |
---|---|---|---|
Finishing: | Painted | Standard: | EN1065 |
Size: | 1.7m-3.0m, Or Tailor Made | Application: | For Shoring Slab Formwork |
High Light: | adjustable steel props,adjustable telescopic steel props |

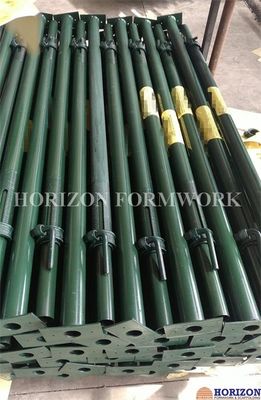

Green Painted Telescopic Steel Props for Shoring Slab Formwork Construction
Steel prop is an important scaffolding component of HORIZON formwork system, especially in the slab formwork. With the prop’s high loading capacity, low weight and stability, HORIZON slab formwork works safely and efficiently on site as well as cost-effective. Also, the prop is fast and easy for handling on site.
Height Range |
Outer tube (mm) |
Inner tube (mm) |
Thickness (mm) |
Adjusting device |
1.7m-3.0m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
2.0m-3.6m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
2.2m-4.0m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
2.5m-4.5m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
3.0m-5.5m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
All the props can work well with Euro formwork systems.
Advantages:
1. High quality steel tubes ensures its high loading capacity.
2. Various finishing are available, such as: hot-dipped galvanization, cold galvanization, powder coating and painting.
3. Special design prevents the operator from hurting his hands between the inner and outer tube.
4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.
5. With the same size of the plate and base plate, the prop heads are easily to insert in the inner tube and outer tube.
6. The strong pallets ensure the transportation easily and safely.
Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.
Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.
What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.
Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
HORIZON FORMWORK, your reliable formwork partner!
