Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall

Certification
China HORIZON FORMWORK CO., LTD. certification
China HORIZON FORMWORK CO., LTD. certification
Customer Reviews
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Laura

This mutual cooperation last for about 4 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Kresimir Brebric

I'm Online Chat Now

Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall

Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall
Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall

Large Image :  Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall

Product Details:
Place of Origin: CHINA
Brand Name: HORIZON
Model Number: HORIZON WALL FORM
Payment & Shipping Terms:
Minimum Order Quantity: 500 sqm
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per week
Detailed Product Description
Material: H20 Wooden Beam, Steel Waling, Plywood OEM: Yes
Colour: Yellow & Blue Type: Wall Form
Supporting: By Panel Strut Wall Height: Upto 6m
High Light:

wall shuttering system

,

concrete wall forming systems

Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall

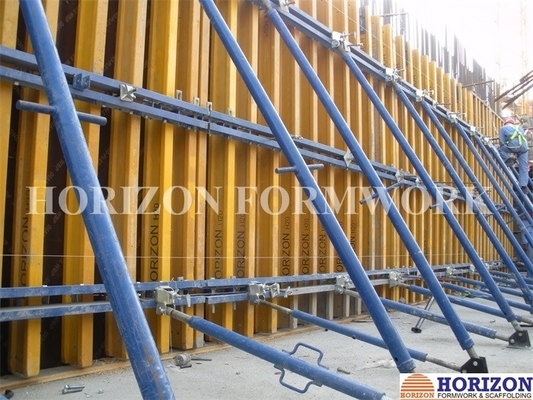

HORIZON wall formwork consists of H20 wooden beam, steel walings and other connecting parts. These components can be assembled formwork panels in different widths and heights, depending on the H20 beam length up to 6.0m.



Main components:

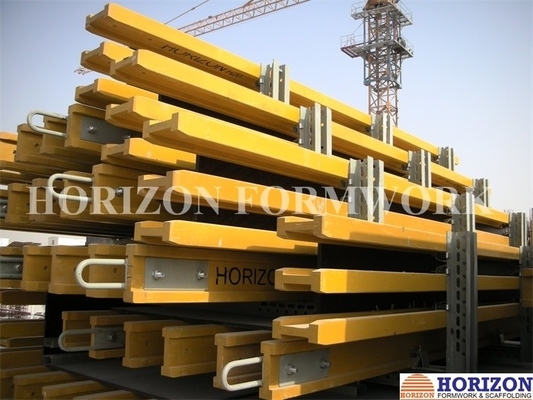

The H20 beam is the basic component of all the elements, with nominal lengths of 0.9 m up to 6.0 m. It has an extremely high load-bearing capacity with a weight of only 4.80 kg/m, which results in fewer walings and tie positions. H20 timber beam can be applied to all wall heights and elements are assembled together appropriately according to each specific project.



Steel walings required are produced in accordance with specific project customized lengths. The longitudinally-shaped holes in the steel waling and waling connectors result in continuously variable tight connections (tension and compression). Every waling joint is tightly connected by means of a waling connector and four wedge pins.



Panel struts (also called “Push-pull prop) are mounted on the steel waling, helping formwork panels erection. The length of panel struts are selected according to the height of the formwork panels.



Using the top scaffold bracket, working and concreting platforms are mounted to the wall formwork. It consists of: top scaffold bracket, planks, steel pipes and pipe couplers.



Components Diagram / photo Specification / description
Wall formwork panel Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 0 For all vertical formworks
H20 Timber beam Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 1

Water proof treated
Height: 200mm
Width: 80mm
Length: as per table size

Steel waling Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 2

Painted, powder coated
[12 steel channel



Flange clamp Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 3Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 4

Galvanized
To connect steel waling and H20 beams

Panel strut Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 5

Painted
help formwork panel erection

Waling connector 80 Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 6

Painted
Used for formwork panels alignment

Corner connector 60x60 Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 7

Painted
Used for forming inner corner formwork with wedge pins

Top scaffold bracket Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 8

Painted,
severs as safety working platform



Universal H20 Beam Wall Formwork Systems, 4m Height For Retaining Wall 9
