|Components:||H20 Beam, Steel Waler||OEM:||Available|
|Colour:||Yellow & Blue Or As Per Request||Application:||For Wall, Column|
|Type:||Vertical Formwork||Category:||Timber Beam Formwork System|
|Material:||Steel, Timber Beam H20||Product Name:||Concrete Steel Formwork,formwork|
|Size:||Client Requirements,customized||Feature:||Reuses,efficient,Easy Operation,high Safety Performance|
concrete wall forming systems,
wall forming systems
Professional Concrete Wall Forming Systems With H20 Beam And Steel Walers

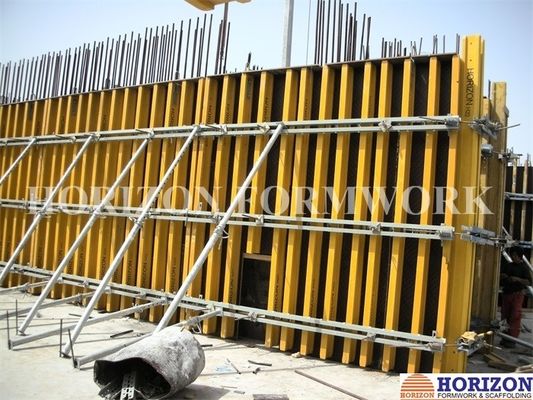

High flexibility with a few main components can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc.. These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.

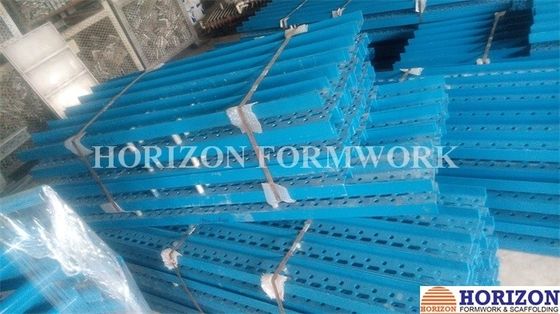

The wall formwork elements are assembled very fast and easily by connecting of H20 beams to the steel walings by means of flange clamp.
1. The concrete wall forming system is used for all types of walls and columns, with high rigidity and stability at low weight.
2. Can choose whichever form face material best meets your requirements - e.g. for smooth fair-faced concrete.
3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.
4. Can be pre-assembled on site or before arrival at site, saving time, cost and spaces.
5. Can match well with most Euro formwork systems.
|Components||Diagram / photo||Specification / description|
|Wall formwork panel||For all vertical formworks|
|H20 Timber beam||
Water proof treated
Painted, powder coated
|Waling connector 80||
|Corner connector 60x60||
|Top scaffold bracket||
