Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Pipe | OEM: | Available |
|---|---|---|---|
| Application: | For Safety Platform | Type: | Upper Platform |
| Supporting: | Sefl Support | Width: | 700mm |
| Height: | 1200mm | Size: | Customized |
| Surface Treatment: | HDG,coated Painted,Powder Coating | Packing: | Steel Pallet |
| Feature: | Reuses,efficient,Easy Operation,high Safety Performance | ||
| High Light: | concrete wall forming systems,wall forming systems |
||

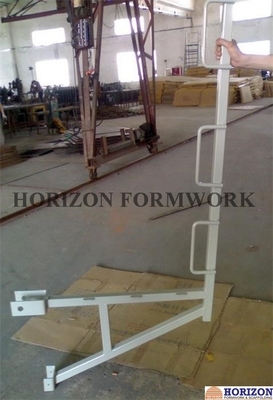

Construction Wall Forming Systems with Top Scaffold Brackets as Safety Platform

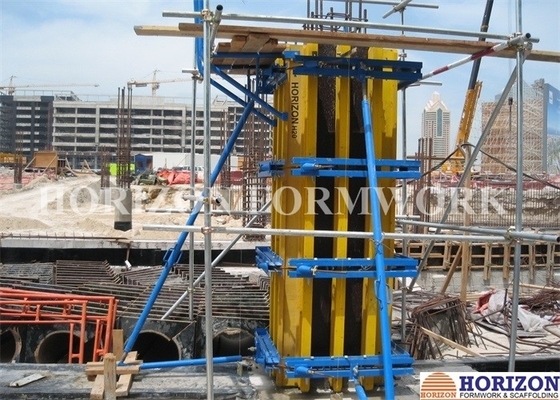

Personnel safety is always the first important thing when assembling and using the formwork systems. The top scaffold brackets perform as stable and safe working platforms at high elevations, especially for workers when pouring concrete or installing different elements on top of the formwork.
These work should be carried out from safe and stable work platforms that prevent workers falling.

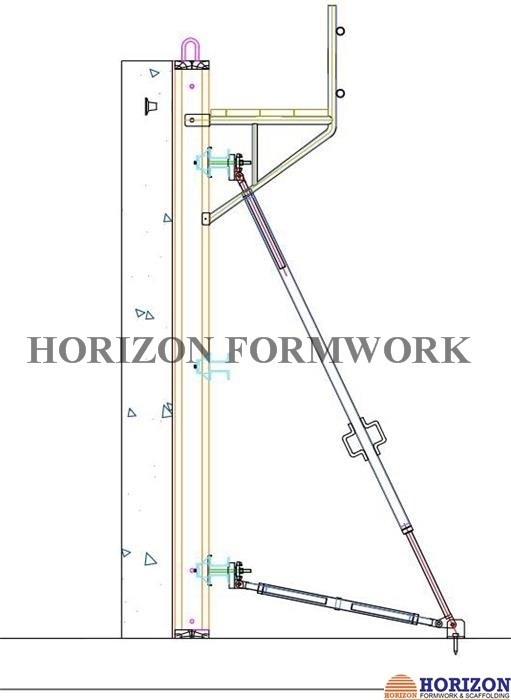

Using the top scaffold bracket, working and concreting platforms are mounted to the wall formwork. This consists of: top scaffold bracket, planks, steel pipes and pipe couplers.
Normally, the top scaffold brackets for the working platform, are fixed to the vertical H20 timber beams.
Wall Formwork Components:
| Components | Specification / description |
| Wall formwork panel | For all vertical formworks |
| H20 Timber beam |
Water proof treated |
| Steel waling |
Painted, powder coated |
| Flange clamp |
Galvanized |
| Panel strut |
Painted |
| Waling connector 80 |
Painted |
| Corner connector 60x60 |
Painted |
| Top scaffold bracket |
Painted, |
