Payment & Shipping Terms:
|Material:||Q235 Steel Pipe||OEM:||Available|
|Finishing:||Painting, Zinc-plateH, HDG, Powder Coated||Application:||For Salb Formwork And Post Shoring|
|Color:||Silver,blue,red,Customer Requirements,yellow||Type:||Heavy Duty,Adjustable Props,Scaffolding Prop,floor Prop|
|Product Name:||1.6-4.0M Steel Adjustable Props,scaffolding Props,Heavy Duty Adjustable Shoring Scaffolding Steel Prop||Thickness:||1.5mm-4mm|
|Size:||2.0-3.5m Or OEM||Outer Tube Diameter:||48/56/60mm,or As Customer's Request|
|Packing:||In Bundle||Inner Tube Diameter:||40mm / 48mm / 56mm,or As Customer's Request|
push pull props,
adjustable telescopic steel props

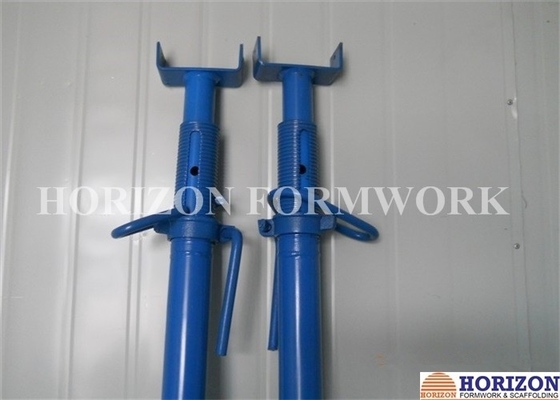

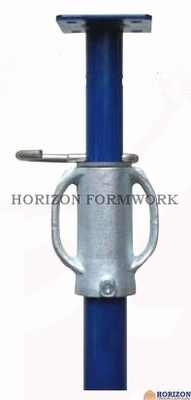

Adjustable Steel Props For Slab Formwork Support And Post Shoring
With high efficiency and easy operation, steel props are designed for the shoring of horizontal form work as well as for post shoring the new poured slab until it reachs required strengh.
Various sizes of props are available:
Inner tube (mm)
|1.7m-3.0m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
|2.0m-3.6m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
|2.2m-4.0m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
|2.5m-4.5m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
|3.0m-5.5m||60 / 57 / 48||48 / 40||1.6-4.0||Ext. thread / Int. thread|
1. High quality steel tubes ensures its high loading capacity.
2. Various finishing are available, such as: hot-dipped galvanization, electric-galvanization, powder coating and painting.
3. Special design of minimum 10cm space prevents the operator from hurting his hands between the inner and outer tube.
4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.
5. With the same size of the base plates, the prop heads (fork heads) are easily to insert in the inner tube and outer tube.
