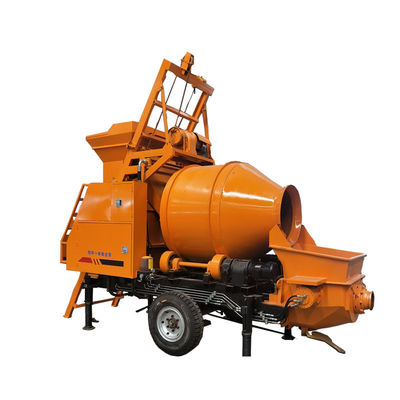

Concrete mixing and conveying integrated pump diesel 142 horsepower Stirring capacity 500L mixing pump

Large Image : Concrete mixing and conveying integrated pump diesel 142 horsepower Stirring capacity 500L mixing pump

Product Details:

Place of Origin:	Xingtai, Hebei
Brand Name:	mingge
Certification:	ISO9001
Model Number:	4108-50

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD18900-26500/Set
Packaging Details:	1:Packing in special plastic bags 2:Fixed in plastic bags to prevent it from falling off. 3:Seal with wooden box
Delivery Time:	3-20days
Supply Ability:	300 Set/Sets per Month

Contact Now

Detailed Product Description

Diesel Power:	142hp	Maximum Theoretical Throughput:	37m³/h
Total Weight:	6000KG	Stirring Capacity:	500L
Maximum Theoretical Conveying Distance:	Vertical 60-150m Parallel 200-400m	Maximum Aggregate:	Ф0.5-4cm
Feeding Height:	950mm	Pipe Diameter:	100（80）mm
Size:	6200×2000×4500mm

Concrete mixing and conveying integrated pump diesel 142 horsepower Stirring capacity 500L mixing pump 0

CONCRETE PUMP WITH MIXER

High- floor cement mortar pump is a small fluid mixture conveying equipment, widely not only used for wet-mixed mortar pumping and wall plastering in high- floor buildings construction, but also for support lining construction in ground heating project, tunnels.The concrete pump casting operation usually needs to be carried out continuously, the construction efficiency is generally very high, and the work progress is very fast. Concrete pump could pump less than 30mm fine aggregate concrete with lower investment cost and operating cost, it is first choice ideal equipment for engineering construction. It adopts S tube as distributing valve to meet large aggregate concrete pumping. The hydraulic system adopts independent three circuit electro-hydraulic control with high reliability. The electrical system control is fully functional with returning pressure control function eliminating pipe blocking failure. The hydraulic- driven mixing device can play the good role of secondary mixing conducive to pumping.

Model	4108 type-50
Throughput	37m³/h
Loading height	950mm
Aggregate size	Ф0.5-4cm
Vertical conveying distance	150m
Horizontal conveying distance	400m
Diameter of delivery pipe	100(80)mm
Diesel Power	142hp
Weight	6000KG
Size	6200×2000×4500mm
Stirring capacity	500L

Concrete mixing and conveying integrated pump diesel 142 horsepower Stirring capacity 500L mixing pump 1

Concrete mixing and conveying integrated pump diesel 142 horsepower Stirring capacity 500L mixing pump 2

Concrete mixing and conveying integrated pump diesel 142 horsepower Stirring capacity 500L mixing pump 3

Concrete mixing and conveying integrated pump diesel 142 horsepower Stirring capacity 500L mixing pump 4

1. What is the delivery time for you?
It takes about 15 working days to arrive.
2. What is the warranty period?
1 year
3. Is there an agent?
We are looking for detectives every day, if you are interested, please feel free to contact us.
4. How do we use the machine?
We will send the English user manual and video together with the machine. If it is a classic, we can teach you online.
5. What is the minimum order quantity:
1 set
6. What is the payment deadline?
30% deposit T/T, such as CIF or CFR, the balance will be paid according to the copy of the bill of lading. 50% deposit T/T,

we will pay the balance weight after the production is completed.
7. What is the lifespan of the machine?
Our machines can be used for more than 30-50 years. Our old customers say it is awesome.
