Galvanized Ringlock Scaffolding System , Pin Lock Scaffold Dia 48.3 X 3mm

Galvanized Ringlock Scaffolding System , Pin Lock Scaffold Dia 48.3 X 3mm
Galvanized Ringlock Scaffolding System , Pin Lock Scaffold Dia 48.3 X 3mm Galvanized Ringlock Scaffolding System , Pin Lock Scaffold Dia 48.3 X 3mm Galvanized Ringlock Scaffolding System , Pin Lock Scaffold Dia 48.3 X 3mm Galvanized Ringlock Scaffolding System , Pin Lock Scaffold Dia 48.3 X 3mm

Large Image :  Galvanized Ringlock Scaffolding System , Pin Lock Scaffold Dia 48.3 X 3mm

Product Details:
Place of Origin: China
Brand Name: HORIZON
Model Number: HORIZON RINGLOCK
Payment & Shipping Terms:
Minimum Order Quantity: 50 tons
Price: pls ask HORIZON
Packaging Details: in pallets / bundles
Delivery Time: 20-25 days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 200 tons per week
Detailed Product Description
Material: Q345 Stell Pipe Finishing: Powder Coated, Zinc-plated, Hdg
Size: Dia 48.3 X 3mm/ 3.25mm OEM: Available
Colour: Customerized
High Light:

ring lock system

,

ring system scaffold

Super quality galvanized Ringlock scaffold system for construction site work


Advantages:

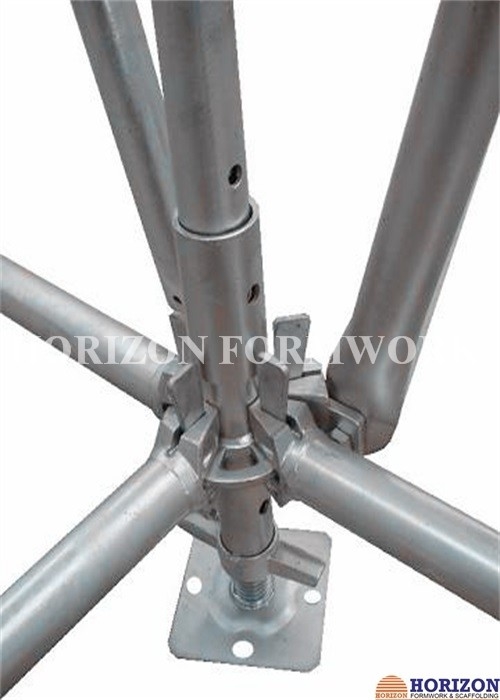

Ring-lock scaffold system is one of the most popular scaffolding systems, mainly composed of standard, ledger, diagonal braces, base collar, plank, wedge pins.
With advantages of high loading capacity, safety, efficiency, easy assembly, and durability, ringlock system is idea for all your shoring and supporting works, especially used in construction of bridges, tunnels, water towers, buildings, oil refinery, etc.
Auto-welding makes very nice looking and good quality.

Specifications

Material pipe High strength steel pipe 48.3mm X 3.0mm / 3.25mm
Steel grade Q235 or Q345
Standard Length L=4000mm, 3000mm, 2500mm, 2000mm, 1500mm, 1000mm, 500mm
Ledger Length L=3000mm, 2500mm, 2000mm, 1500mm, 1200mm,1000mm
Rosette distance 500mm
Surface finishing HDG, zinc plated, powder coated, painted
Other sizes Customized sizes are available on special request




Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.

Galvanized Ringlock Scaffolding System , Pin Lock Scaffold Dia 48.3 X 3mm 0

Who we are:

HORIZON FORMWORK is a professional formwork solution provider for years, supplying: formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.



What we offer:

Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc. On-site supervising support is available on request.



Why us:

With 10 years of experience, we know exactly what you need; Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request. Prompt action on customer's requirments. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.



HORIZON FORMWORK, your reliable formwork partner!
