Product Details:
Payment & Shipping Terms:
|
| Material: | H20 Beam, Steel Waling, Panel Strut | OEM: | Yes |
|---|---|---|---|
| Application: | For Shear Wall And Column | Type: | Shear Wall Formwork |
| Supporting: | By Panel Strut | Wall Height: | Upto 6m |
| Formwrok Width: | Upto 5m Or Depending On Design | ||
| High Light: | wall shuttering system,concrete wall forming systems |
||

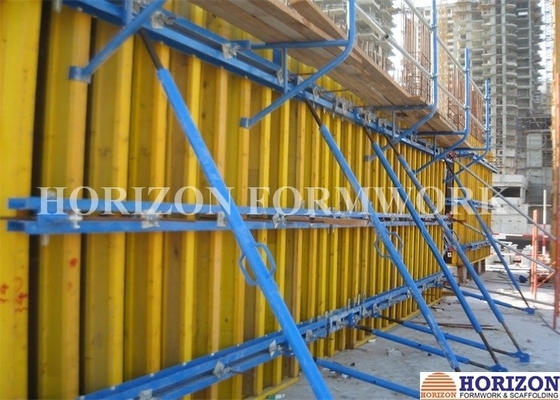

Shear Wall Formwork Systems , Vertical Concrete Wall Formwork I Joist Beam

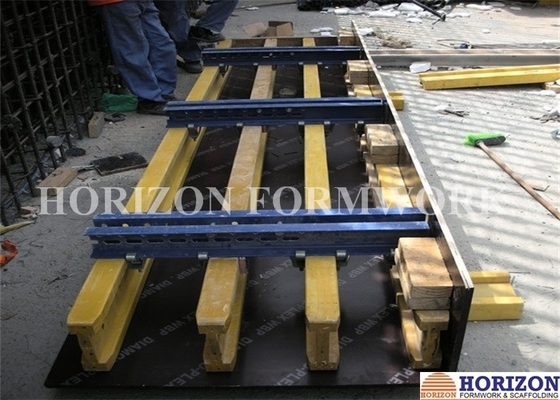

Timber beam H20, steel waling, plywood and clamp etc.. These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens. The formwork panels can be assembled in different widths and heights, depending on the H20 beam length up to 6.0m.
Advantages:
1. The wall formwrok system is used for all types of walls and columns, with high rigidity and stability at low weight.
2. Can choose whichever form face material best meets your requirements - e.g. for smooth fair-faced concrete.
3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.
4. Can be pre-assembled on site or before arrival at site, saving time, cost and spaces.
5. Can match well with most Euro formwork systems.
Wall Formwork Components:
| Components | Specification / description |
| Wall formwork panel | For all vertical formworks |
| H20 Timber beam |
Water proof treated |
| Steel waling |
Painted, powder coated |
| Flange clamp |
Galvanized |
| Panel strut |
Painted |
| Waling connector 80 |
Painted |
| Corner connector 60x60 |
Painted |
| Top scaffold bracket |
Painted, |
