Adjustable Wall Formwork Systems Panel Strut , Flexible Concrete Formwork Secure

Adjustable Panel Strut for Plumbing and Bracing Wall Formwork When Erection

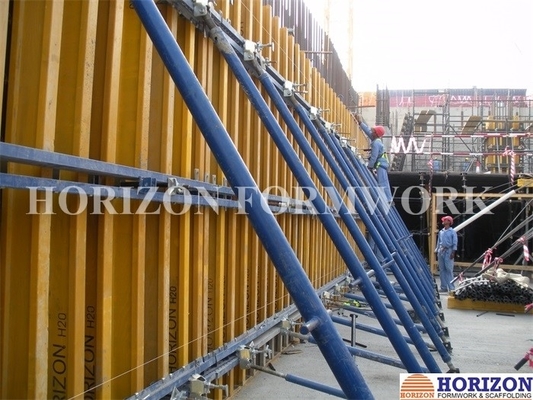

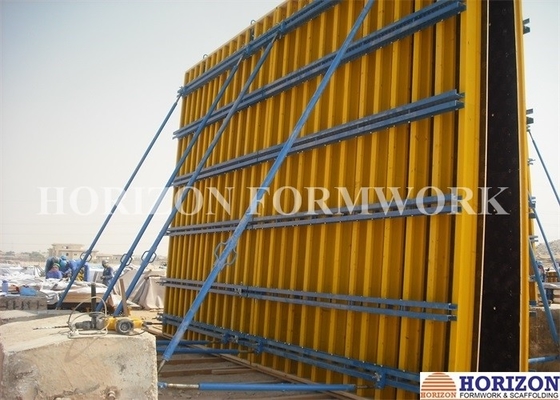

The panel strut (also called “Push-pull brace) enables the initial positioning of the formwork panels for strait and curved walls, for plumbing and bracing concrete wall forms, column forms, and many other construction applications where strong, rigid bracing elements are required.
It also provides stability until permanent structural connections are completed and lateral stability of the building or structure is established.

Advantages:
1. Wide range of height adjustment.
2. Customized sizes are available for special applications.
3. Left hand & right hand shoulder nuts are equipped for easily adjusting length.
4. Very simple connection to steel walings and fixing on ground.
Wall Formwork Components:


Components	Diagram / photo	Specification / description
Wall formwork panel		For all vertical formworks
H20 Timber beam		Water proof treated Height: 200mm Width: 80mm Length: as per table size
Steel waling		Painted, powder coated [12 steel channel
Flange clamp		Galvanized To connect steel waling and H20 beams
Panel strut		Painted help formwork panel erection
Waling connector 80		Painted Used for formwork panels alignment
Corner connector 60x60		Painted Used for forming inner corner formwork with wedge pins
Top scaffold bracket		Painted, severs as safety working platform



Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.
What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.
Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
HORIZON FORMWORK, your reliable formwork partner!
