Product Details:
Payment & Shipping Terms:
|
| Material: | Q235, Steel Pipe | OEM: | Available |
|---|---|---|---|
| Finishing: | Painting, Zinc-plate, Hdg | Standard: | EN1065 |
| Size: | From 1.7m To 5.5m | Application: | For Supporting Floor Formwork |
| Tube Size: | Diameter 56mm, 48mm | ||
| Highlight: | adjustable steel props,push pull props |
||
Wide Height Range of Steel Props With Cast Iron Sleeve Nut for Euro Market
Adjustable props are used for supporting work in buildings construction, with working height range from 1.7m up to 3,00-5,50 m.
Two end plates, upper and lower plates, serve to give stability to the steel prop.
The inner tube is Ø 48.3 mm (thickness from 2 mm to 4.0mm) with holes to adjust the working height with help of the pin.
The outer tube is Ø57 mm (thickness from 1.6 mm to 2.5mm) with reinforcement at foot.
The pin diameter is between 12 and 14 mm, with a special design that does not allow its fall.

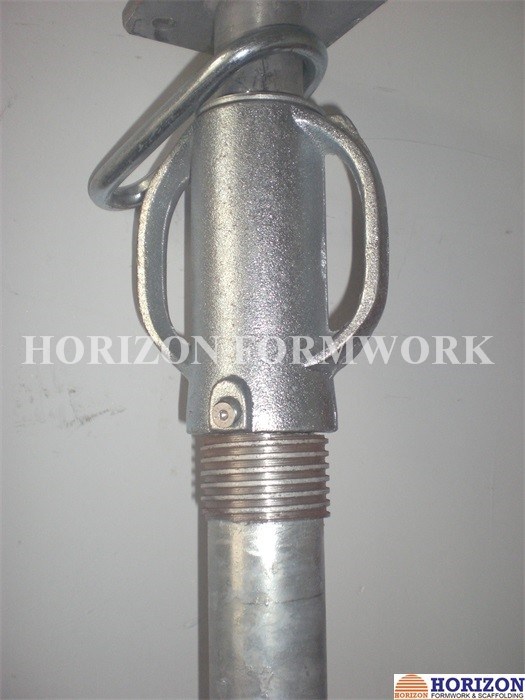

The thread is covered by a cup-type nut that has 2 side handles for easy handling.
A steel ring plate is also equipped on the nut that prevents concrete materials falling into the nut and get stuck.
The adjusting nut is made from cast iron, with high strength loading capacity.
|
Height Range (m) |
Outer tube (mm) |
Inner tube (mm) |
Thickness (mm) |
Adjusting device |
| 1.7m-3.0m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
| 2.0m-3.6m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
| 2.2m-4.0m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
| 2.5m-4.5m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
| 3.0m-5.5m | 60 / 57 / 48 | 48 / 40 | 1.6-4.0 | Ext. thread / Int. thread |
