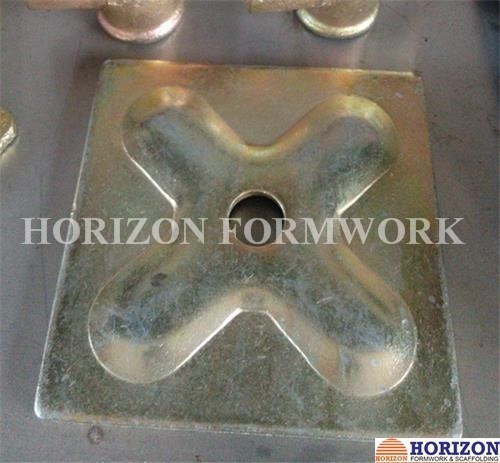

Pressed Waler Plate in Conjunction With Wing Nut for Wall Formwork
The pressed waler plate is a completion to the wing nut without flange. For panel formwork with steel profiles and timber wall formwork, the square plate 120 x 120 and the rectangle plate 100 x140 mm are suitable.
Waler plate is used for timber or steel walings in conjunction with a wing nut or a hex nut for load transfer. The embossing of the plate increases its rigidity.
Load capacity depends on the contact area, the admissible bearing pressure and the thread bar that is used.
Waler plate | Bar Ø (mm) | Plate (mm) | Hole Ø (mm) | Weight (Kg) |
![]() |
15 | 120 x 120 x 6 | 19 | 0.65 |
15 | 120 x 120 x 8 | 19 | 0.90 | |
15 | 120 x 120 x 10 | 19 | 1.10 | |
20 | 140 x 100 x 10 | 19 | 1.15 |
Part Name | Specification | Weight (kg) | Remark |
Tie-rod
|
D15 D20 |
1.5 kg/m 2.7 kg/m |
L=6m; Special length available upon request. |
Super plate
|
D15 | 1.28 | Used in case of tie-rod and formwork panels are not vertical. |
3-lug wing nut
|
D15 D20 |
0.97 0.78 |
For tie-rod D15; For tie-rod D20 |
Waling plate
|
120 x 120 x 6, Φ19 120 x 120 x 8, Φ19 |
0.65 0.85 |
For tie-rod and nut D15; galvanized |
Water stopper
|
D15 D20 |
0.55 0.72 |
Used in water resistant wall; With tie-rod D15 / D20 |
Anchor plate
|
D20 | 0.95 | Embedded in concrete as lost part |
