| Material: | Steel Bar | OEM: | Yes |
|---|---|---|---|
| Application: | To Connect H20 Beam And Waling | Type: | Doka Type |
| Width: | 120mm | Width-across: | 190mm |
| High Light: | concrete formwork accessories,construction formwork accessories |
||

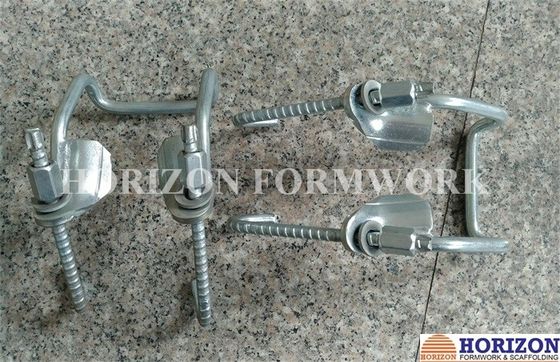

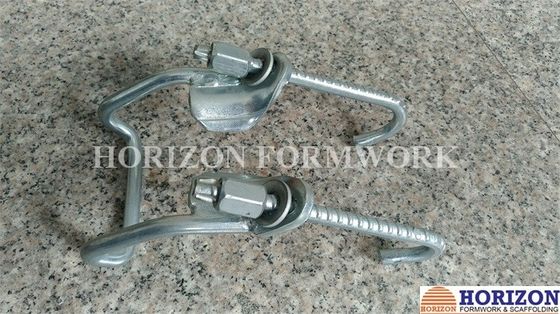

Flange Clamp H20 to Connect Timber Beam onto Steel Waling in Wall Formwork
Flange clamp is used for fastening timber beam H20 anywhere on the steel waling.
1). Push the Flange clamps onto the timber beam H20.
2). Before tightening them to the steel waling, make sure that they are centrically positioned.
3). Gently tighten on one side. Tap the stirrup with a hammer to ensure that the clamp is sitting correctly.
4). Tighten the clamp on the other side and tap the stirrup with the hammer.
5). Tighten the first side of the clamp completely.
Mount the flange clamps with the hexagonal nuts facing downwards (towards the bottom of the formwork). This protects the nuts against soiling during pouring concrete.
| Bar Ø (mm) | Width (mm) | Width-across (mm) | Weight (Kg) |
| 12 | 120 | 190 | 1.0 |
Wall Formwork Components:
| Components | Specification / description |
| Wall formwork panel | For all vertical formworks |
| H20 Timber beam |
Water proof treated |
| Steel waling |
Painted, powder coated |
| Flange clamp |
Galvanized |
| Panel strut |
Painted |
| Waling connector 80 |
Painted |
| Corner connector 60x60 |
Painted |
| Top scaffold bracket |
Painted, |
Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
