|Material:||Q235 Steel Plate||OEM:||Available|
|Finishing:||Zinc Coated||Application:||For For Retaining Board|
scaffolding formwork accessories

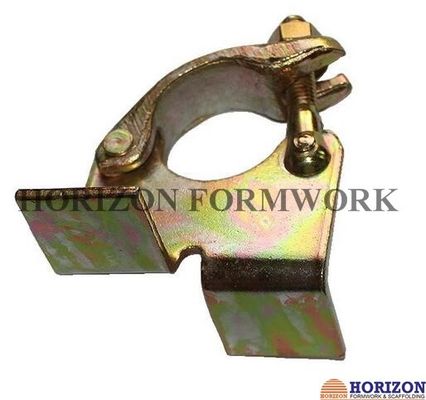

Pressed Board Retaining Coupler EN74, Scaffold Clamp for Retaining Board
Pressed Board retaining coupler is widely used for immediate and secured locking of the boards in the proper position.
1. Scaffold board retaining coupler, British type board retaining clamp for pipe dia 48.3mm
2. Surface treatment: self colour(black), galvanized upon request.
3. Safe and standard package, 25 pcs in bags or cartons, and then on pallet, suits for long distance delivery.
5. Apply to EN74 standard.
|Items||Pipe diameter||Weight (Kg)||Tech.|
|Swivel coupler BS1139||48.3*48.3mm||1.05||Pressed|
|Double coupler BS1139||48.3*48.3mm||0.85||Pressed|
|Sleeve coupler BS1139||48.3*48.3mm||1.00||Pressed|
|Single coupler BS1139||48.3mm||0.52||Pressed|
|Board retaining coupler BS1139||48.3mm||0.62||Pressed|
|Putlog coupler BS1139||48.3mm||0.62||Pressed|
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.
What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
HORIZON FORMWORK, your reliable formwork partner!
