Payment & Shipping Terms:
|Finishing:||Galvanized, Painted, Powder Coated||Size:||148 X 152|
|Application:||To Connect Corner Formwork||Samples:||Available|
concrete formwork accessories,
construction formwork accessories

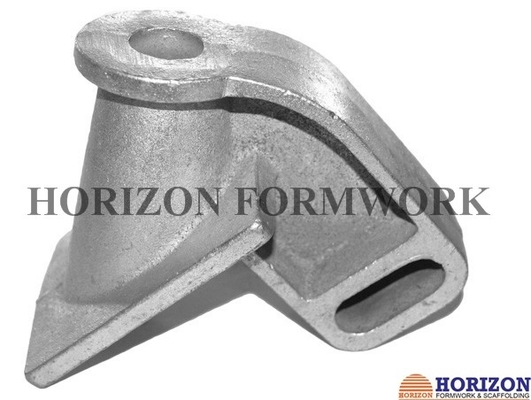

Cast Tie Yoke for Connecting Corner Formwork on Steel Walers, Tie Bracket

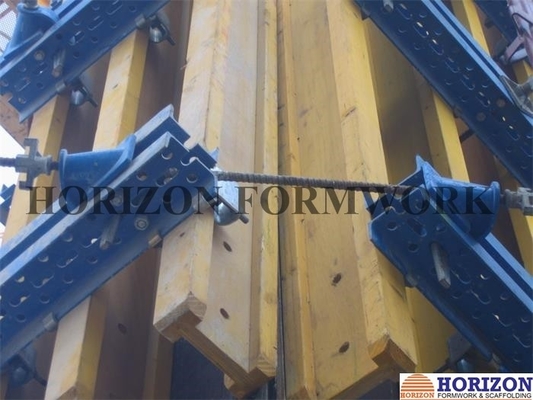

The tie yokes are used to fasten the steel walers at corner formwrok with help of other elements: tie rod, wing nut and joining wedge.
In one end, it is attached to the steel walers with the joining wedge; in the other end, a tie tod go through the tie yoke by a degree of 40° to max. 50°and tightened to the other tie yoke. In this way, the corner formwork is tightly connected at an angle of 45°.
|Specification (mm)||Weight (Kg)|
|148 x 152 x 76||2.1|
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
--- bundles: timber beam, steel props, tie rod, etc.
--- pallet: small parts will be put in bags and then on pallets.
--- wooden cases: it is available on customer's request.
--- bulk: some irregular goods will be loaded in bulk in container.
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.
What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
HORIZON FORMWORK, your reliable formwork partner!
