| Material: | H20 Beam, Steel Waling, Jumping Bracket | OEM: | Available |
|---|---|---|---|
| Colour: | Grey & Blue, As Per Request | Climbing Type: | By Crane Lift |
| Applications: | For Core Wall, Bridges Piers, Etc. | Cycle Time: | 5-7 Days Per Cycle |
| Cost Saving: | Lobor Cost Saving | ||
| High Light: | jump formwork system,self climbing scaffold system |
||

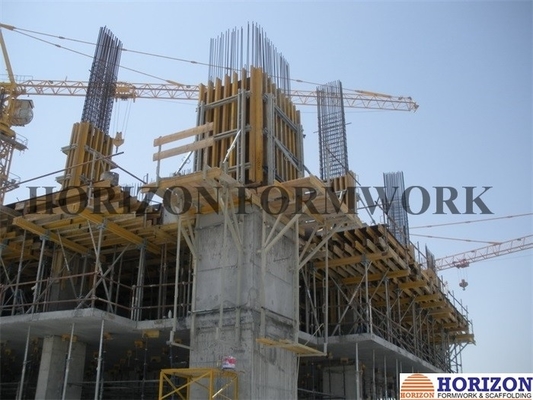

Jumping Formwork Bracket as Smart Solution for Concreting Core Wall Structures

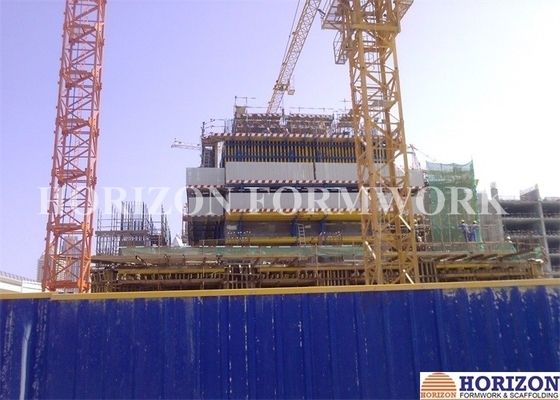

Jumping Formwork Bracket is a smart solution for pouring concrete for core wall structures and bridge projects. Lifted up by crane, it performs as a loading-bearing platform as well as a safe working platform.
The jumping bracket is applicable to heights of more than 100 m over ground and allows a maximum formwork height of up to 5.40 m.
Advantages:
• The sets made up of jumping brackets and formwork panels are moved to the next pouring level with one single crane lift.
• Adaptable to any structures, including straight, inclined and circular walls.
• It is possible to build working platforms at different levels. The access to the platforms is provided by safety ladders.
• The jumping brackets allow rolling-back the formwork panels using a system, formed by a carriage and a rack, incorporated in these brackets.
• Formwork’s vertical adjusting and plumbing is completed with leveling screw jacks and push-pull props.
• Brackets are anchored to the wall with anchor system.
|
1. Climbing bracket
2. Main platform
3. Pouring platform
4. Finishing platform
5. Roll-back system
6. Push-pull prop
7. Vertical waling
8. Anchor system
9. Formwork
|
| Components | Specification / description |
| Climbing scaffold | For all vertical formworks |
| H20 Timber beam |
Water proof treated Height: 200mm Width: 80mm Length: as per table size |
| Steel waling |
Painted, powder coated [12 steel channel
|
| Flange clamp |
Galvanized To connect steel waling and H20 beams |
| Panel strut |
Painted
|
| Waling connector 80 |
Painted Used for formwork panels alignment |
| Corner connector 60x60 |
Painted Used for forming inner corner formwork with wedge pins |
| Top scaffold bracket |
Painted, severs as safety working platform
|
