| Material: | Steel Pressing | OEM: | Available |
|---|---|---|---|
| Finishing: | Galvanized, Painting, Powder Coating | Size: | 75x110mm, 69x105mm |
| Application: | To Fasten Formwork With Tie Rod | Samples: | Available |
| High Light: | construction formwork accessories,concrete wall form accessories |
||

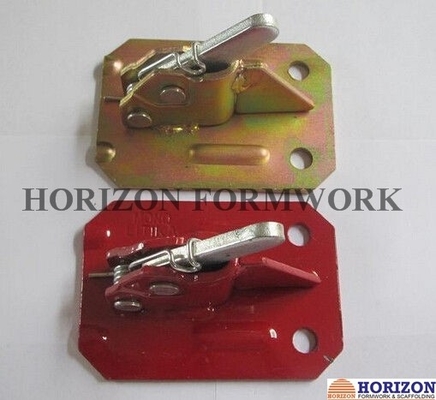

Forming Accessories of Quick Spring Clamp for Fastening Formwork With Tie Rod
Quick Spring clamp is an easy and effective way for securing and fastening formwork with tie rods in concrete applications.
Tie rods with diameters from 5-10mm can pass through the spring clamps.
Load capacity:
6mm tension bar appr. 4KN
8mm tension bar appr. 7KN
10mm tension bar appr. 11KN
| Bar Ø (mm) | Plate size (mm) | Weight (Kg) |
| 5-10 | 69 x 105 x 3 | 0.33 |
| 5-10 | 75 x 110 x 4 | 0.42 |
The tensioner tool is used to pull the tie rod through the clamp.
