HORIZON FORMWORK CO., LTD.
Professional manufacturer of formwork and scaffolding systems
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Steel Plate | OEM: | Available |
|---|---|---|---|
| Finishing: | Galvanized Yellow Or Silver | Application: | For Pipe Connection |
| Size: | For 48.3x48.3, 48.3x60, 60x60, Etc | Type: | Swivel Coupler |
| High Light: | scaffolding attachments,scaffolding formwork accessories |
||

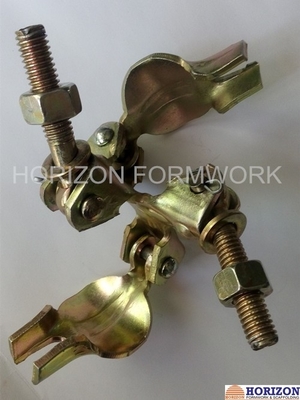

BS Standard EN74 Scaffold Coupler For Connecting Steel Pipe Dia 48.3mm x 48.3mm

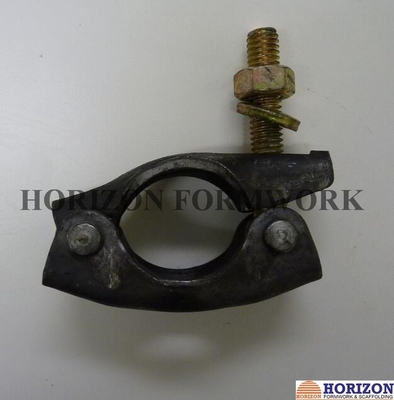

1. Scaffold coupler, fixed coupler, British type fixed clamp for steel pipe dia 48.3x48.3mm
2. Surface treatment: self colour (black), galvanized yellow or silver colour as per request.
3. Made of steel plate thickness 4.75mm.
4. Safe and standard package, 25 pcs in bags or cartons, and then on pallet, suitable for long distance delivery.
5. Apply to EN74 and BS1139 standard.
| Items | Pipe diameter | Weight (Kg) | Tech. |
| Swivel coupler BS1139 | 48.3*48.3mm | 1.05 | Pressed |
| Double coupler BS1139 | 48.3*48.3mm | 0.85 | Pressed |
| Sleeve coupler BS1139 | 48.3*48.3mm | 1.00 | Pressed |
| Single coupler BS1139 | 48.3mm | 0.52 | Pressed |
| Board retaining coupler BS1139 | 48.3mm | 0.62 | Pressed |
| Putlog coupler BS1139 | 48.3mm | 0.62 | Pressed |
Contact Person: Mr. H. Chang
Tel: +86 319 3188757
Fax: 86-319-3156299
