Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Pressing | OEM: | Available |
|---|---|---|---|
| Finishing: | Galvanized, Painting | Size: | 75x110mm |
| Application: | Tensioning Formwork Tie Bar | Samples: | Available |
| High Light: | concrete formwork accessories,concrete wall form accessories |
||

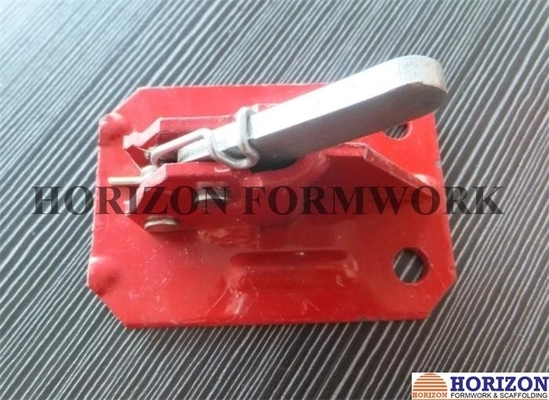

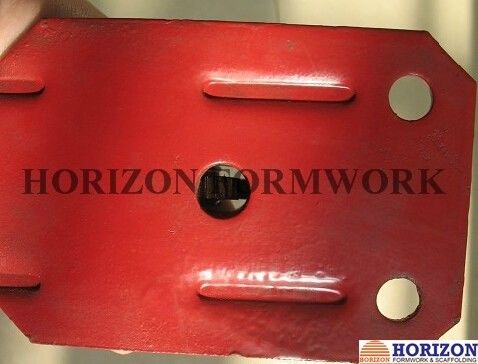

Spring Rapid Clamps Used in Concrete Formwork and Post Tensioning Work
Spring rapid clamp is a quick and effective way to secure wire tie bars in light formwork applications. The tensioner tool is used to pull the wire tie bar through the clamp.
Wire tie bar diameter from 5-10mm can pass through the spring clamp.
Main application: bracing formwork when being used for foundations or applied to beam formwork.
Load capacity:
6mm tension bar appr. 4KN
8mm tension bar appr. 7KN
10mm tension bar appr. 11KN
| Bar Ø (mm) | Plate size (mm) | Weight (Kg) |
| 5-10 | 69 x 105 x 3 | 0.35 |
| 5-10 | 75 x 110 x 4 | 0.43 |
