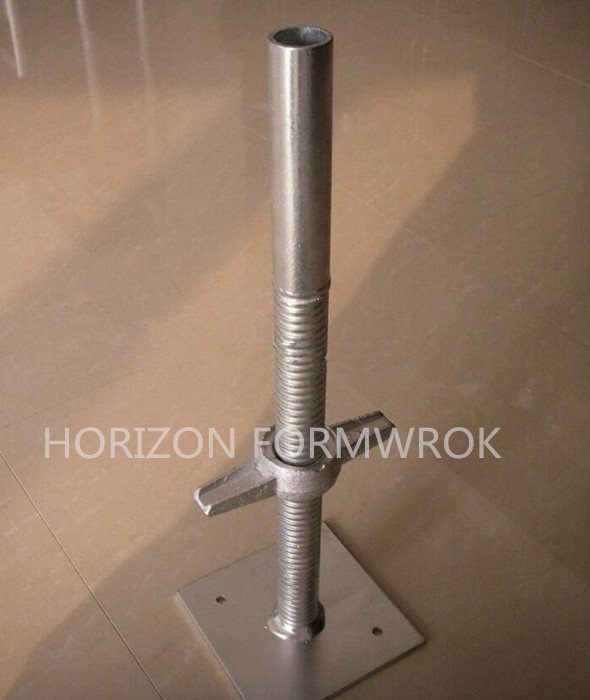

High Strength Scaffolding Hollow Screw Base Jack With BS1139 Standard
The screw jack for is used as a starting base for a scaffold system, such as frames, ringlock, or cuplock systems. It has an adjustable height to allow for compensation on uneven grades so that a level scaffold is always attainable.
Made from high strength steel pipes, screw jack heads are equipped with 150 x 150 mm head plate to support and stabilize horizontal timber beam or steel beams in slab construction. Due to the big supporing area, slope of up to 6 % can be achieved by the head plate.
Jack heads are always working in conjunction with Jack base to adjust scaffolding sets in a easy way. Base plate is welded to the tubular screw stem, with a hole in each corner for securing to mudsill.
Casting iron nut is used on the screw stem, high-strength and galvanized for durability.
ACME threads are used on the screw stem.

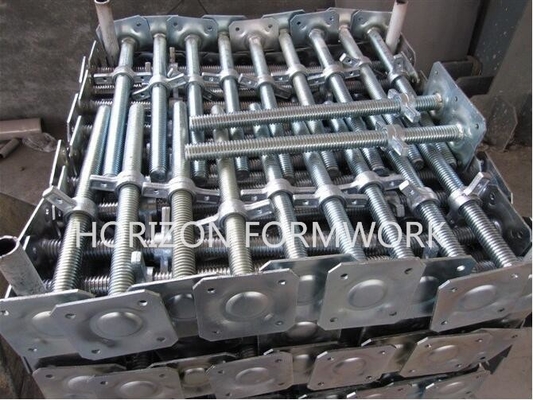

Scaffold Base Jack:
| Screw /Tube size (mm) | Base plate (mm) | Nut (kg) | Weight (kg) |
| Ø30(solid) x 400 (600) | 120 x 120 x 5 | 0.25 | 2.75 (3.72) |
| Ø32(solid) x 400 (600) | 120 x 120 x 5 | 0.30 | 3.10 (4.20) |
| Ø34(solid) x 400 (600) | 120 x 120 x 5 | 0.40 | 3.50 (4.76) |
| Ø34(hollow) x 4 x 400 (600) | 150 x 150 x 6 | 0.55 | 2.80 (3.39) |
| Ø38(hollow) x 4 x 400 (600) | 150 x 150 x 6 | 0.50 | 2.90 (3.60) |
| Ø48(hollow) x 4 (5) x 600 | 150 x 150 x 8 | 1.00 | 5.00 (5.60) |
| Ø48(hollow) x 4 (5) x 820 | 150 x 150 x 8 | 1.00 | 6.00 (6.80) |
U-head Jack:
| Screw / Tube size (mm) | Base plate (mm) | Nut (kg) | Weight (kg) |
| Ø30(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.25 | 3.36 (4.33) |
| Ø32(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.30 | 3.70 (4.81) |
| Ø34(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.40 | 4.10 (5.37) |
| Ø34(hollow) x 4 x 400 (600) | 150 x 120 x 50 x 6 | 0.55 | 2.91 (3.74) |
| Ø38(hollow) x 4 x 400 (600) | 150 x 150 x 50 x 6 | 0.50 | 3.61 (4.28) |
| Ø48(hollow) x 4 (5) x 600 | 180 x 150 x 50 x 8 | 1.00 | 6.24 (6.82) |
| Ø48(hollow) x 4 (5) x 820 | 180 x 150 x 50 x 8 | 1.00 | 7.20 (8.00) |
