| Material: | Q235 Steel Pipe | OEM: | Available |
|---|---|---|---|
| Finishing: | Zinc-plate, Hdg, Painted | Standard: | BS1139 |
| Size: | Dia38mm X 5mm, Or Tailor Made | Application: | Scaffolding Height Adjustament |
| Base Plate: | 150 X 150 X 5mm | Casting Nut: | 0.5kg |
| High Light: | scaffold adjusting screw,scaffold leveling jack |
||

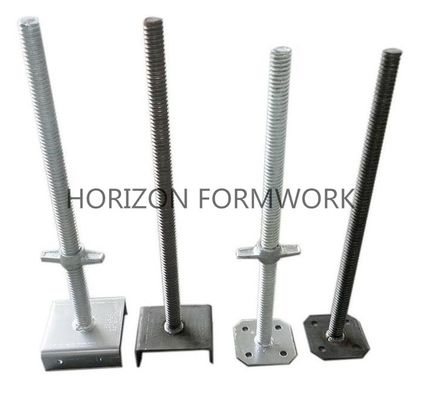

Adjustable Screw Jack Head For Ringlock Scaffolding System Dia 48mm x 5mm
Manufactured from both solid bar and tube, in mild steel and hi-tensile steel, Jack base & U-head are widely used in various scaffolding systems for adjusting working height.
Galvanized or Hot-dip galvanized finishing. Customized size is available as per request.
Base Jack 48mm x 800mm x 5mm
For bearing timber beams or steel beams. Slope of up to 6 % can be compensated by the head plate.
With height adjustment of 300 mm.
Scaffold Base Jack:
| Screw /Tube size (mm) | Base plate (mm) | Nut (kg) | Weight (kg) |
| Ø30(solid) x 400 (600) | 120 x 120 x 5 | 0.25 | 2.75 (3.72) |
| Ø32(solid) x 400 (600) | 120 x 120 x 5 | 0.30 | 3.10 (4.20) |
| Ø34(solid) x 400 (600) | 120 x 120 x 5 | 0.40 | 3.50 (4.76) |
| Ø34(hollow) x 4 x 400 (600) | 150 x 150 x 6 | 0.55 | 2.80 (3.39) |
| Ø38(hollow) x 4 x 400 (600) | 150 x 150 x 6 | 0.50 | 2.90 (3.60) |
| Ø48(hollow) x 4 (5) x 600 | 150 x 150 x 8 | 1.00 | 5.00 (5.60) |
| Ø48(hollow) x 4 (5) x 820 | 150 x 150 x 8 | 1.00 | 6.00 (6.80) |
U-head Jack:
| Screw / Tube size (mm) | Base plate (mm) | Nut (kg) | Weight (kg) |
| Ø30(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.25 | 3.36 (4.33) |
| Ø32(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.30 | 3.70 (4.81) |
| Ø34(solid) x 400 (600) | 150 x 120 x 50 x 5 | 0.40 | 4.10 (5.37) |
| Ø34(hollow) x 4 x 400 (600) | 150 x 120 x 50 x 6 | 0.55 | 2.91 (3.74) |
| Ø38(hollow) x 4 x 400 (600) | 150 x 150 x 50 x 6 | 0.50 | 3.61 (4.28) |
| Ø48(hollow) x 4 (5) x 600 | 180 x 150 x 50 x 8 | 1.00 | 6.24 (6.82) |
| Ø48(hollow) x 4 (5) x 820 | 180 x 150 x 50 x 8 | 1.00 | 7.20 (8.00) |
