| Material: | Steel Q235 | OEM: | Available |
|---|---|---|---|
| Finishing: | Natrual Colour, Galvanized | Size: | For Bar Dia 15mm, 20mm |
| Application: | To Connect Tie Rods | Length: | 100mm, 110mm |
| Samples: | Available | Tech. Process: | Machining Produced |
| High Light: | shuttering tie rod,tie rod scaffolding |
||

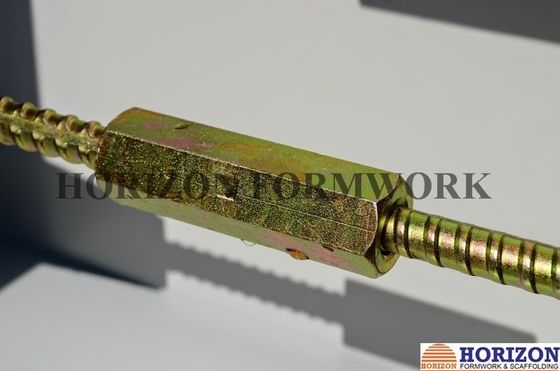

Weldable Hexagonal Nut Couplers for Reinforcement Tie Rod in Wall Form
Hex nut is used as normal fasteners together with washer plate; Some times used as steel bar connector, connecting two bars in the reinforcement work. When used as connector, usually a stop-pin is fixed in the middle of the nut, in order to secure the screw-in length of the bar.
| Item No. | Bar dia. (mm) | Length (mm) | Hex. (mm) | Weight (Kg) |
| HN-50/15 | 15 | 50 | 30 | 0.22 |
| HN-60/15 | 15 | 60 | 30 | 0.25 |
| HN-100/20* | 20 | 100 | 36 | 0.60 |
| HN-110/20* | 20 | 110 | 36 | 0.66 |
| HN-130/20* | 20 | 130 | 36 | 0.78 |
Note: " * " means equipped with stop-pin in centre.
Machining produced, weldable, galvanized;
Customized size available. Other different sizes are available: for bar dia15mm, 20mm, 26mm.
Besides the weldable nuts, casting iron hex. nuts are also available according to requirments.
| Part Name | Specification | Weight (kg) | Remark |
|
Tie-rod
|
D15 D20 |
1.52 kg/m 2.71 kg/m |
L=6m; Special length available upon request. |
|
Wing nut
|
D15 D20 |
0.35 0.70 |
For tie-rod D15 / D20 |
|
Super plate
|
D15 | 1.28 | Used in case of tie-rod and formwork panels are not vertical. |
|
3-lug wing nut
|
D15 D20 |
0.97 0.78 |
For tie-rod D15; For tie-rod D20 |
|
Waling plate
|
120 x 120 x 6, Φ19 120 x 120 x 8, Φ19 |
0.65 0.85 |
For tie-rod and nut D15; galvanized |
|
Water stopper
|
D15 D20 |
0.55 0.72 |
Used in water resistant wall; With tie-rod D15 / D20 |
|
Anchor plate
|
D20 | 0.95 | Embedded in concrete as lost part |
