Swivel Base Plate Jack ACME Trapezoidal Thread For Cuplock Scaffold Systems

Certification
China HORIZON FORMWORK CO., LTD. certification
China HORIZON FORMWORK CO., LTD. certification
Customer Reviews
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Laura

This mutual cooperation last for about 4 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Kresimir Brebric

I'm Online Chat Now

Swivel Base Plate Jack ACME Trapezoidal Thread For Cuplock Scaffold Systems

Swivel Base Plate Jack ACME Trapezoidal Thread For Cuplock Scaffold Systems
Swivel Base Plate Jack ACME Trapezoidal Thread For Cuplock Scaffold Systems Swivel Base Plate Jack ACME Trapezoidal Thread For Cuplock Scaffold Systems Swivel Base Plate Jack ACME Trapezoidal Thread For Cuplock Scaffold Systems Swivel Base Plate Jack ACME Trapezoidal Thread For Cuplock Scaffold Systems

Large Image :  Swivel Base Plate Jack ACME Trapezoidal Thread For Cuplock Scaffold Systems

Product Details:
Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: swivel jack foot
Payment & Shipping Terms:
Minimum Order Quantity: 2000 pcs
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 20000 pcs per week
Detailed Product Description
Material: Q235 Steel Pipe Finishing: Zinc-plate, Hdg, Painted
Standard: EN74 Base Plate: 150 X 150 X 5mm
Casting Nut: 0.75kg Thread: ACME Trapezoid Thread
High Light:

scaffold adjusting screw

,

scaffold leveling jack

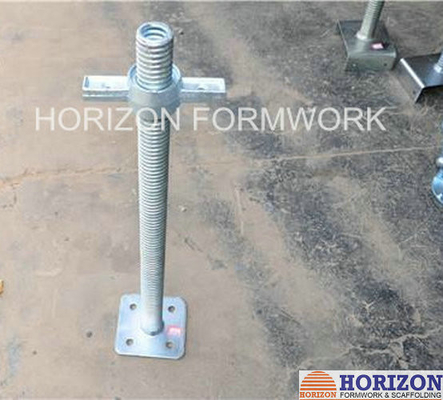

Screw Jack Foot with ACME Trapezoidal Thread for Cuplock Scaffold Systems



Made from high strength steel pipes, screw jack foot are equipped with 150 x 150 mm swivel base plate to support and stabilize scaffoldings in construction. It can fit all types of scaffold systems, such as frames, ringlock, or cuplock systems.

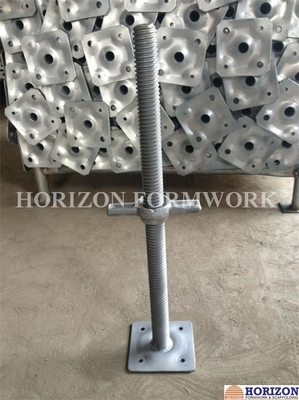

Swivel jack foot is equipped to the tubular screw stem by bolt, with a hole in each corner for securing to mudsill. ACME threads are used on the screw stem.



Jack heads are always working in conjunction with Jack foot to level scaffolding sets in a easy way.

There is a notch / cut in the threads of the screw stem to prevent the nut from coming off and to keep the screw jack from being over-extended.



Scaffold Base Jack:

Screw /Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 120 x 120 x 5 0.25 2.75 (3.72)
Ø32(solid) x 400 (600) 120 x 120 x 5 0.30 3.10 (4.20)
Ø34(solid) x 400 (600) 120 x 120 x 5 0.40 3.50 (4.76)
Ø34(hollow) x 4 x 400 (600) 150 x 150 x 6 0.55 2.80 (3.39)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 6 0.50 2.90 (3.60)
Ø48(hollow) x 4 (5) x 600 150 x 150 x 8 1.00 5.00 (5.60)
Ø48(hollow) x 4 (5) x 820 150 x 150 x 8 1.00 6.00 (6.80)

U-head Jack:

Screw / Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 150 x 120 x 50 x 5 0.25 3.36 (4.33)
Ø32(solid) x 400 (600) 150 x 120 x 50 x 5 0.30 3.70 (4.81)
Ø34(solid) x 400 (600) 150 x 120 x 50 x 5 0.40 4.10 (5.37)
Ø34(hollow) x 4 x 400 (600) 150 x 120 x 50 x 6 0.55 2.91 (3.74)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 50 x 6 0.50 3.61 (4.28)
Ø48(hollow) x 4 (5) x 600 180 x 150 x 50 x 8 1.00 6.24 (6.82)
Ø48(hollow) x 4 (5) x 820 180 x 150 x 50 x 8 1.00 7.20 (8.00)


Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.

What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.

Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.

HORIZON FORMWORK, your reliable formwork partner!
