Flexible Scaffold Screw Jack Dismountable Base Plate Zinc - Plated Finishing

Flexible Scaffold Screw Jack Dismountable Base Plate Zinc - Plated Finishing
Flexible Scaffold Screw Jack Dismountable Base Plate Zinc - Plated Finishing Flexible Scaffold Screw Jack Dismountable Base Plate Zinc - Plated Finishing

Large Image :  Flexible Scaffold Screw Jack Dismountable Base Plate Zinc - Plated Finishing

Product Details:
Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: screw jacks
Payment & Shipping Terms:
Minimum Order Quantity: 2000 pcs
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 20000 pcs per week
Detailed Product Description
Material: Q235 Steel Pipe OEM: Available Upon Request
Finishing: Zinc-plate, Hdg, Painted Standard: BS1139 / EN74
Size: Dia 38mm X 4mm, Or As Request Application: Scaffolding Height Adjustament
Base Plate: 150 X 150 X 5mm Thread: ACME Trapezoid Thread
High Light:

scaffold adjusting screw

,

scaffold leveling jack

Flexible Screw Jacks with Dismountable Base Plate for Frame Scaffold Systems

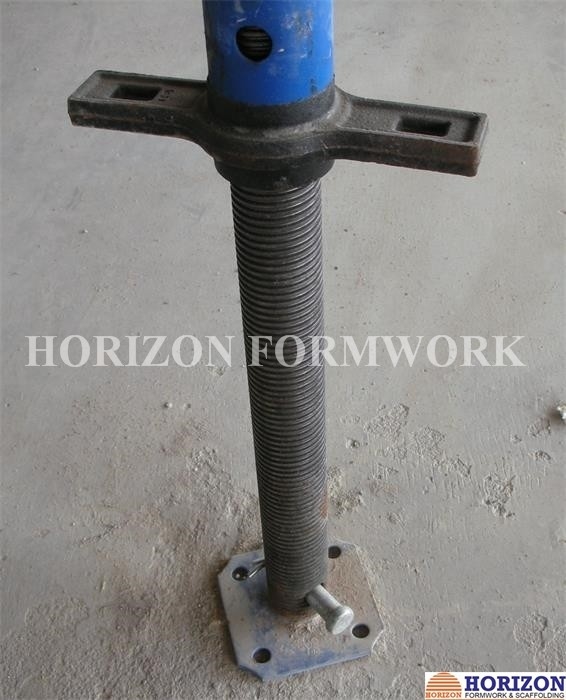

A steel base plate is equipped to the tubular screw jack by bolt, with a hole in each corner for securing to mudsill. ACME threads are used on the screw jack.



Made from high strength steel pipes, screw jacks are to support and stabilize scaffoldings in construction. It can fit all types of scaffold systems, such as frames, ringlock, or cuplock systems.



There is a notch / cut in the threads of the screw jack to prevent the nut from coming off and to keep the screw jack from being over-extended.



Scaffold Base Jack:

Screw /Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 120 x 120 x 5 0.25 2.75 (3.72)
Ø32(solid) x 400 (600) 120 x 120 x 5 0.30 3.10 (4.20)
Ø34(solid) x 400 (600) 120 x 120 x 5 0.40 3.50 (4.76)
Ø34(hollow) x 4 x 400 (600) 150 x 150 x 6 0.55 2.80 (3.39)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 6 0.50 2.90 (3.60)
Ø48(hollow) x 4 (5) x 600 150 x 150 x 8 1.00 5.00 (5.60)
Ø48(hollow) x 4 (5) x 820 150 x 150 x 8 1.00 6.00 (6.80)

U-head Jack:

Screw / Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 150 x 120 x 50 x 5 0.25 3.36 (4.33)
Ø32(solid) x 400 (600) 150 x 120 x 50 x 5 0.30 3.70 (4.81)
Ø34(solid) x 400 (600) 150 x 120 x 50 x 5 0.40 4.10 (5.37)
Ø34(hollow) x 4 x 400 (600) 150 x 120 x 50 x 6 0.55 2.91 (3.74)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 50 x 6 0.50 3.61 (4.28)
Ø48(hollow) x 4 (5) x 600 180 x 150 x 50 x 8 1.00 6.24 (6.82)
Ø48(hollow) x 4 (5) x 820 180 x 150 x 50 x 8 1.00 7.20 (8.00)



Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.

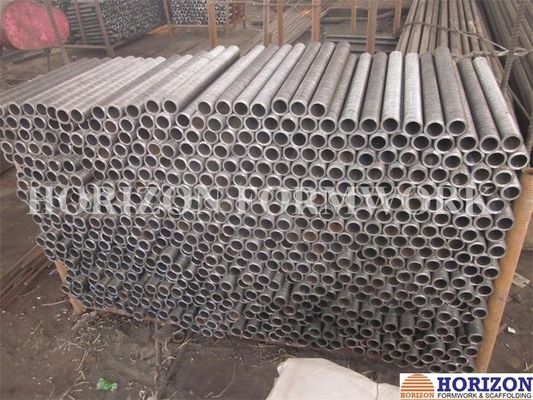

2. Different packages are used for different products:
--- bundles: timber beam, steel props, tie rod, etc.
--- pallet: small parts will be put in bags and then on pallets.
--- wooden cases: it is available on customer's request.
--- bulk: some irregular goods will be loaded in bulk in container.

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.

What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.

Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.

HORIZON FORMWORK, your reliable formwork partner!
