Waterproof Walls Galvanized Tie Rods Steel Non Recoverable With Welded Plate

China Waterproof Walls Galvanized Tie Rods Steel Non Recoverable With Welded Plate supplier
Waterproof Walls Galvanized Tie Rods Steel Non Recoverable With Welded Plate supplier Waterproof Walls Galvanized Tie Rods Steel Non Recoverable With Welded Plate supplier

Large Image :  Waterproof Walls Galvanized Tie Rods Steel Non Recoverable With Welded Plate

Product Details:

Place of Origin: CHINA
Brand Name: HORIZON
Certification: SGS
Model Number: Dywidag Tie rod

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: pls ask HORIZON
Packaging Details: pallets, bundles, bulk
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 tons per week
Contact Now
Detailed Product Description
Material: 45# Steel Rod And Plate OEM: Available
Finishing: Natrual Colour Size: Dia 15mm, 20mm, 26.5mm
Application: For Water Proof Wall Length: Dependig On Wall Thickness
Samples: Available

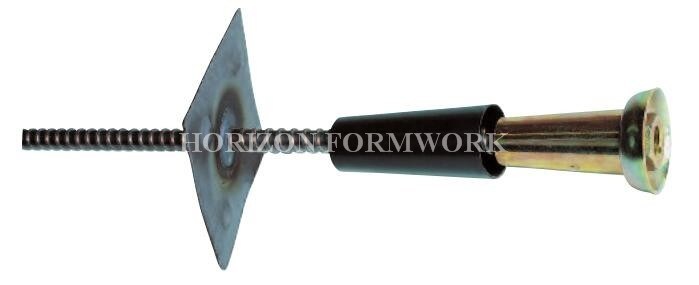

Non Recoverable Tie Rod with Welded Plate as Water Stop for Waterproof Wall



The demand for waterproof walls always means an extra work and needs special care when installing and removing of the formwork anchors with water stops to tighten double side formwork elements.



Non recoverable tie bar with welded intermediate sheet, available for tie rods Ø 15.0 / 20.0 and 26.5 mm

The advantage of this method is that after finishing the works no hollow space remains in the concrete, in which the water can be collected.

The tie bar will be concreted without a wrapping plastic tube in the middle of the wall as a non recoverable part.

To prevent the additional water circulation, a square sheet 120 x 120 mm is welded at center of the tie rod. The non recoverable tie rod will be completed with steel cones as couplers on both sides and extended with the usual tie anchors.

After striking of the formwork, the cones will be removed. The use of the plastic conical sleeve will ease the removing.





Part Name Specification Weight (kg) Remark

Tie-rod



D15

D20

1.52 kg/m

2.71 kg/m

L=6m;

Special length available upon request.

Wing nut



D15

D20

0.35

0.70

For tie-rod D15 / D20

Super plate



D15 1.28 Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut



D15

D20

0.97

0.78

For tie-rod D15;

For tie-rod D20

Waling plate



120 x 120 x 6, Φ19

120 x 120 x 8, Φ19

0.65

0.85

For tie-rod and nut D15;

galvanized

Water stopper



D15

D20

0.55

0.72

Used in water resistant wall;

With tie-rod D15 / D20

Anchor plate



D20 0.95 Embedded in concrete as lost part




Waterproof Walls Galvanized Tie Rods Steel Non Recoverable With Welded PlatePacking:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.


Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
