| Material: | Q235 Steel Pipe | Application: | To Hold Shoring Prop In Slab Formwork System |
|---|---|---|---|
| OEM: | Available | Type: | Removable Folding Tripod |
| Work Height: | 900mm, 700mm | Finishing: | Painting, Galvanized, Powder Coating, |
| Colour: | As Request | ||
| Highlight: | slab shuttering system,slab scaffolding system |
||

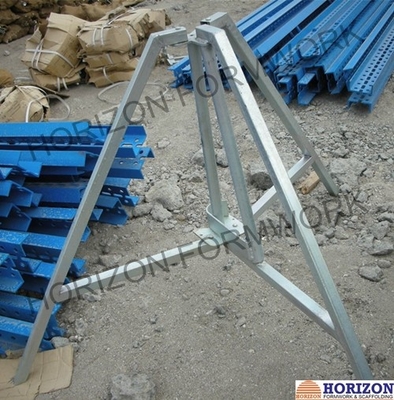

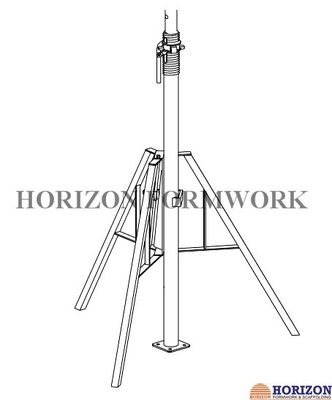

The removable folding tripod makes it easier to set up the tubular steel shoring props during slab formwork system erection. The prop is simply set in the open stand and secured with the clamping hook with a gentle blow of the hammer. The tripods can be used with all types of props.
The flexibly mounted supporting legs of the tripod permit an optimal fit, even in the corners of the structure.
| Tripod | Specification | Description | Weight (Kg) |
 |
Tripod H90
|
Made from square tube, heavy duty, for props of great dimensions. Working height 900mm. | 10.2 |
|
Tripod H70 | Made from square tube, heavy duty, for props of light dimensions. Working height 700mm. | 8.5 |
