Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Pressed | OEM: | Available |
|---|---|---|---|
| Finishing: | Galvanized, Painting | Size: | 75x110mm |
| Application: | For Tensioning Steel Wire Tie Bar | Samples: | Available |
| High Light: | construction formwork accessories,concrete wall form accessories |
||

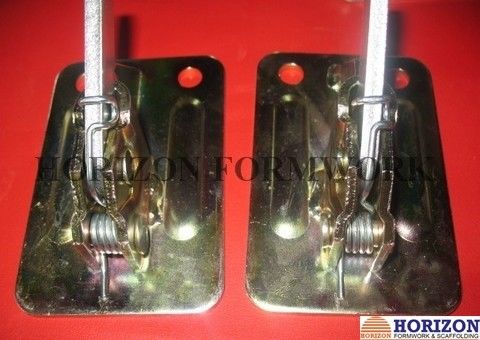

Concrete Forming Rapid Spring Clamps for Tensioning Steel Wire Tie Bar
Rapid spring clamp is a fast and effective way of securing wire tie bars in light formwork applications.
Tensioner tools are used to pull the wire tie bar through the clamp.
Wire tie bar diameter from 5-10mm can pass through the spring clamp.
Main application: bracing formwork when being used for foundations or applied to beam formwork.
Load capacity:
6mm tension bar appr. 4KN
8mm tension bar appr. 7KN
10mm tension bar appr. 11KN
| Bar Ø (mm) | Plate size (mm) | Weight (Kg) |
| 5-10 | 69 x 105 x 3 | 0.33 |
| 5-10 | 75 x 110 x 4 | 0.42 |
